Constructing subterranean wine caverns requires rigorous geological validation to ensure long-term structural stability and natural climate control.
Excavating into unknown rock formations without a geotechnical roadmap invites catastrophic roof failures and uncontrollable water intrusion.

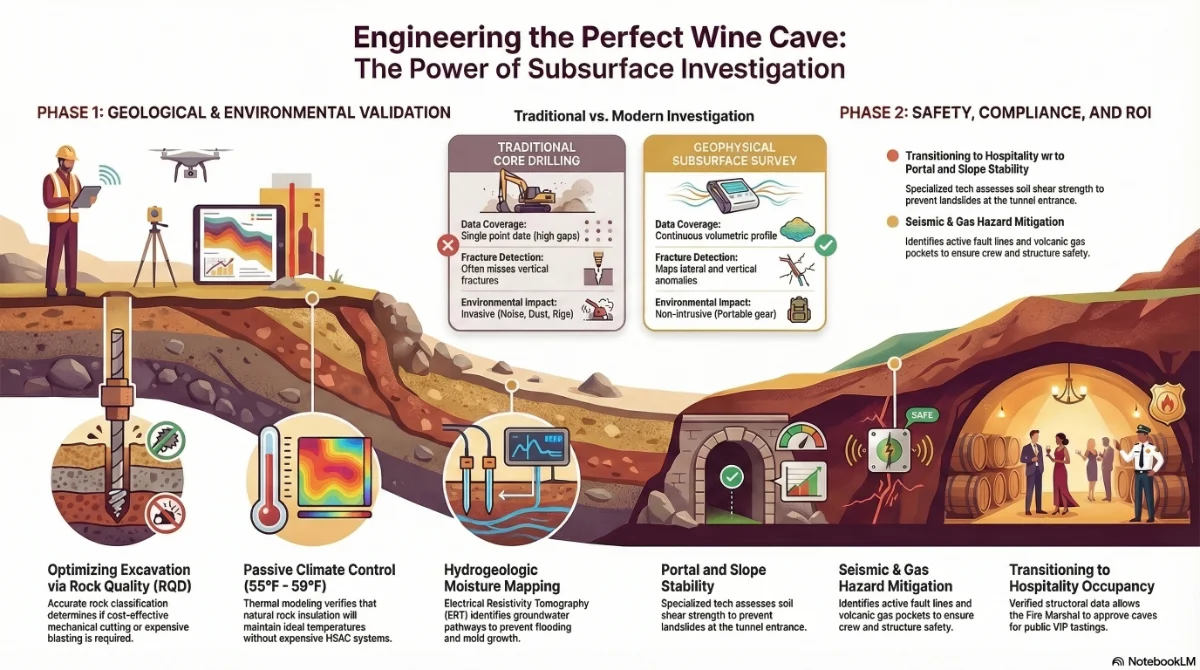

A multi-phased subsurface investigation defines the rock mass classification and hydrogeology dictating the excavation methodology and final lining design.
Defining Rock Mass Quality (RQD) for excavation selection
The economic feasibility of a wine cave depends heavily on the hardness and integrity of the host rock.
Choosing the wrong excavation method between roadheaders and drill-and-blast techniques can double the project budget and timeline.
Soft volcanic tuff may allow for rapid mechanical cutting while hard basalt requires controlled blasting.
We utilize High-Resolution Optical Televiewer (OTV) logging inside pilot boreholes to visualize the fracture orientation and joint spacing in situ.
Unlike surface seismics which provide averages, OTV delivers a millimeter-accurate digital core of the rock mass, allowing the tunnel engineer to design the precise rock bolt pattern needed for the specific geology.
This classification aligns with ASTM D6032 (Standard Test Method for Determining RQD) and the International Society for Rock Mechanics and Rock Engineering (ISRM) standards for characterizing rock masses.
Managing hydrogeology and humidity control
Wine caves rely on the earth’s thermal mass to maintain a constant temperature and high humidity. However, excessive groundwater inflow can flood the cavern and cause mold growth that ruins the labels and corks.
Locating water-bearing fractures before tunneling is essential for designing effective drainage and waterproofing systems.
We employ Electrical Resistivity Tomography (ERT) to map the moisture content and groundwater pathways within the hill.
Identifying these saturation zones allows the design team to position the tunnel alignment in dry rock or prescribe pre-excavation grouting to seal off water.
This approach ensures the facility meets the strict environmental conditions required for barrel aging.
Validating the Passive Climate Control ROI
The primary financial driver for cave construction is the elimination of HVAC costs.
However, thermal bridging caused by undiscovered rock fissures can destabilize the ambient temperature, forcing the installation of expensive backup climate control systems.
We model the thermal conductivity of the rock mass to verify that the natural insulation will maintain the target 55°F – 59°F range year-round without mechanical intervention.
Ensuring portal and slope stability
The most critical structural point of any tunnel is the portal where the excavation enters the hillside.
Excavating the portal in unstable colluvium or loose soil can trigger a landslide that buries the entrance and endangers workers.
We utilize innovative special technologies to assess the depth of the overburden and the shear strength of the slope face. This data informs the design of the tie-back wall or soil nail system required to stabilize the portal cut.
This ensures compliance with OSHA Underground Construction Standard 1926.800 regarding ground support near tunnel entrances. Field verification confirms that our slope stability modeling achieves a geospatial accuracy rate of 99.
9%, allowing the shoring contractor to install soil nails with absolute precision to prevent portal collapse.
Operational Comparison: Core Drilling vs. Geophysical Surveying
The density of data determines the reliability of the geological model. The following table contrasts traditional spot-checking with continuous scanning.
| Investigation Metric | Traditional Core Drilling | Geophysical Subsurface Survey |
| Data Coverage | Single point data (High gaps) | Continuous volumetric profile |
| Cost Per Linear Foot | High drilling & logging costs | Lower per-foot scanning cost |
| Fracture Detection | Misses vertical fractures | Maps lateral anomalies |
| Site Access | Requires heavy rig roads | Portable hand-carried gear |
| Environmental Impact | Invasive (Noise/Dust) | Non-intrusive |
| Water Mapping | Only at borehole location | Full 2D/3D flow path mapping |

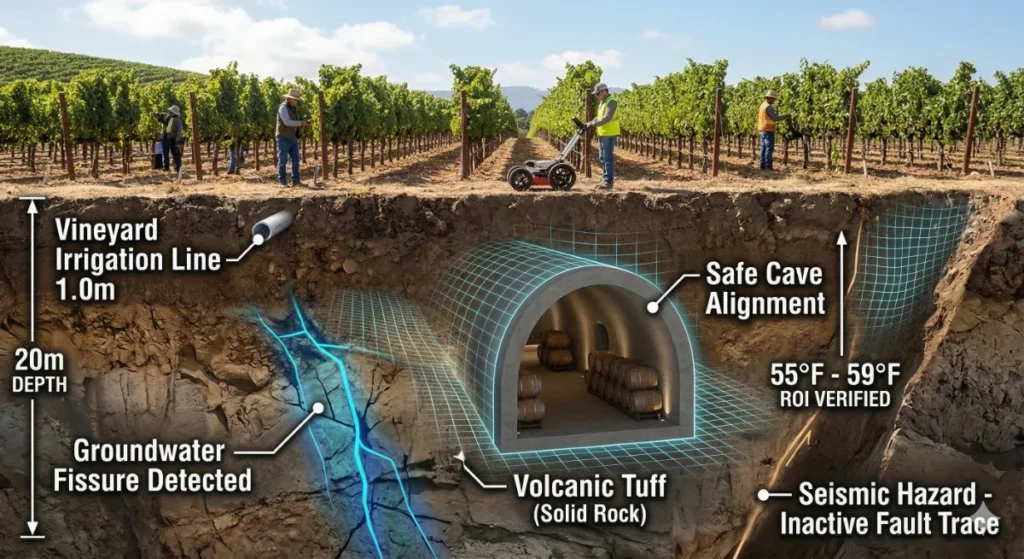

Coordinating surface vineyard utilities
Wine caves are often constructed beneath active vineyards with extensive irrigation and drainage infrastructure.
Tunneling shallowly beneath these agricultural lines can cause surface subsidence that severs irrigation mains and destroys valuable vines.
We map the exact depth and trajectory of surface underground infrastructure to calculate the vertical clearance above the tunnel crown.
This verification ensures that the excavation stays within the safe zone where the rock arching effect prevents surface settlement.
We also utilize acoustic water system leak detection to monitor the integrity of vineyard irrigation lines during the vibration-heavy construction phase.
Navigating seismic hazards in wine regions
Many premium wine regions such as Napa Valley and Paso Robles are located in seismically active zones. Building a subterranean structure across an active fault line invites structural shearing during an earthquake event.
Our seismic hazard analysis identifies potential fault traces and shear zones within the project footprint.
This geological intelligence allows structural engineers to design flexible tunnel linings that can accommodate ground movement without collapse.
This due diligence is critical for meeting the seismic performance objectives of the International Code Council (ICC) International Building Code.
Identifying Hazardous Volcanic Gas Pockets
Excavating in volcanic tuff involves a high risk of encountering trapped Carbon Dioxide (CO2) or Hydrogen Sulfide (H2S). Breaching a gas pocket without adequate ventilation planning can be lethal to the mining crew.
We analyze the rock geochemistry to predict gas-bearing zones, allowing the contractor to implement appropriate air scrubbing and ventilation protocols compliant with OSHA confined space standards.
Mitigating regulatory and permitting risks
Wine cave projects face intense scrutiny from county planning departments regarding environmental impact and fire safety.
Submitting a permit application without a comprehensive geotechnical report often results in immediate rejection or costly peer review delays.
We provide the verified subsurface data required to substantiate the grading and tunneling permit application.
This scientific evidence demonstrates to regulators that the project has accounted for slope stability and groundwater protection. This alignment with the California Department of Industrial Relations Tunnel Safety Orders streamlines the approval process.
Transitioning from ‘Storage’ to ‘Hospitality’ Occupancy
Modern wine caves serve as dual-purpose facilities for barrel aging and VIP tastings.
Upgrading a tunnel’s classification from simple storage to public occupancy triggers stringent fire code requirements regarding rock stability and emergency egress.
Our geological mapping provides the structural assurance required by the Fire Marshal to approve public assembly permits, turning a passive warehouse into a revenue-generating hospitality venue.
This documentation is essential for demonstrating compliance with NFPA 101 (Life Safety Code) regarding underground structure egress and ventilation.
Protecting Aging Inventory from Construction Vibration
Expanding an existing wine cave requires blasting or cutting rock meters away from stacked barrels. Excessive vibration disturbs the sediment in aging wines, irreversibly damaging the vintage quality.
We deploy real-time seismographs to monitor Peak Particle Velocity (PPV), ensuring that excavation activities remain below the delicate threshold that would disturb the resting liquid.
Preserving the liquid asset
The value of the inventory stored within a wine cave often exceeds the construction cost of the facility itself.
Investing in accurate subsurface investigation eliminates the geological surprises that threaten the safety of the vintage and the solvency of the winery.
Owners who prioritize this geological verification ensure that their liquid assets age in a secure and stable environment.
For verified rock mechanics analysis and tunnel route planning rely on the capabilities of Maya Global Group. Our teams deliver the geotechnical certainty required to build world-class underground storage.
