Tunnel Boring Machine (TBM) operations in dense urban environments allow zero margin for navigational error.
Striking an unmapped deep foundation pile or encountering an unexpected geological transition can result in months of downtime and millions in repair costs.
A comprehensive geophysical campaign provides the continuous subsurface profile required to steer the cutterhead safely through the congested subterranean volume.

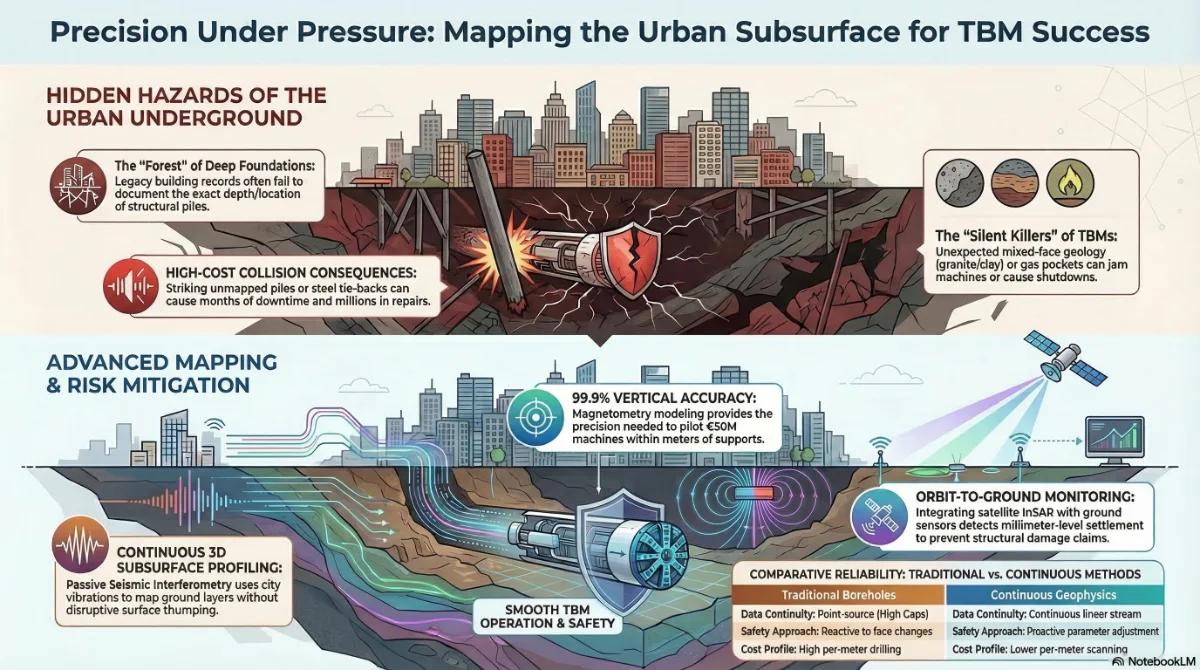

Navigating the obstacle course of deep foundations

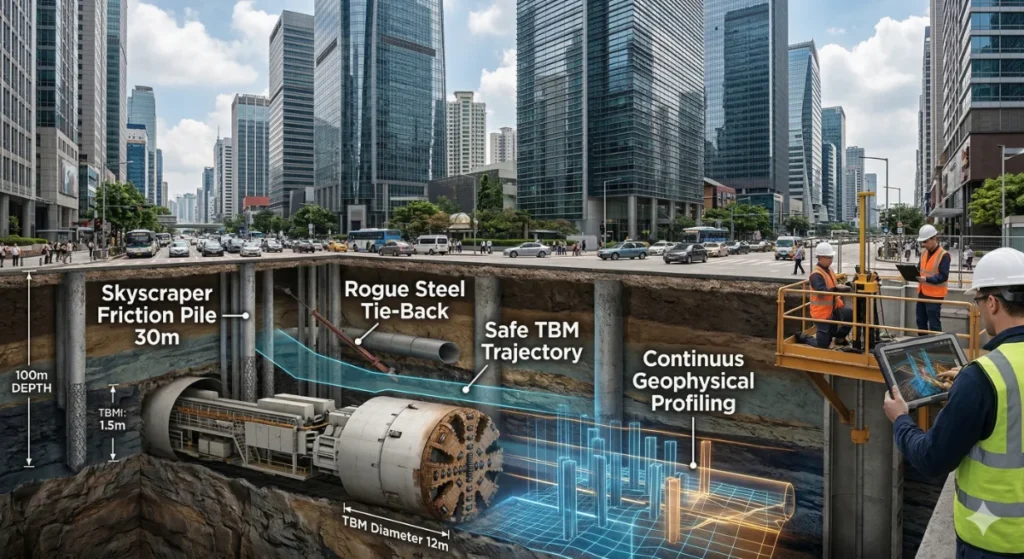

The primary threat to deep tunnel alignment is not standard street-level utilities but the “forest” of vertical structural piles supporting skyscrapers above.
Legacy building records rarely document the exact depth or deviation of these friction piles creating a high-collision risk for the TBM.
A collision with a reinforced concrete pile destroys the cutterhead tools and compromises the structural integrity of the tower above.
We employ borehole magnetometry and gyroscopic deviation surveys to map the exact XYZ coordinates of existing deep foundations.
This data allows the tunnel alignment engineer to design a trajectory that meets strict engineering clearance standards, weaving between the piles with verified precision.
Field verification of pile toe levels confirms that our magnetometry modeling achieves a vertical accuracy rate of 99.
9%, providing the confidence needed to pilot a €50 million machine within meters of structural supports in accordance with the Federal Highway Administration Technical Manual for Design and Construction of Road Tunnels.
Predicting mixed-face geological conditions
TBM cutterheads are optimized for specific ground types, either hard rock or soft soil. An unexpected transition zone where the face consists of both granite and clay causes uneven wear and can jam the machine.
Relying solely on vertical boreholes spaced hundreds of meters apart leaves dangerous data gaps where these transition zones hide.
We utilize Passive Seismic Interferometry (Ambient Noise Tomography) to harvest the city’s background vibration data and create a continuous velocity model of the stratigraphy.
Unlike active seismic methods that require disruptive thumping, this passive approach maps the shear-wave velocity profile deep beneath the urban canopy without surface permits.
This continuous data stream warns the TBM operators of approaching mixed-face conditions allowing them to adjust thrust parameters and conditioning agents in advance, maintaining the advance rates recommended by the International Tunnelling and Underground Space Association.
Reducing Contingencies in the Geotechnical Baseline Report (GBR)
The GBR is the contractual bedrock of any tunneling project, defining the allocated risk between owner and contractor.
Vague geological data forces contractors to price in massive risk premiums for ‘unforeseen ground conditions.
‘ By providing continuous geophysical profiles, we narrow the GBR baselines, allowing contractors to bid with tighter margins and reducing the owner’s need for excessive contingency funds.
Identifying The Silent TBM Killer: Abandoned Tie-Backs
Urban basements are often supported by high-tensile steel ground anchors (tie-backs) that encroach into the public right-of-way.
Striking a steel tendon can entangle the cutterhead, causing catastrophic damage that requires a hyperbaric intervention to repair.
Our borehole magnetometry scans specifically target the magnetic signature of these rogue steel elements, allowing for their extraction prior to TBM arrival.
Managing groundwater and liquefaction risks
Unexpected water ingress at the tunnel face is a leading cause of ground loss and surface sinkholes.
High-pressure aquifers or lenses of loose, saturated sand can wash into the excavation chamber and destabilize the surrounding soil.
Our hydro-geological surveys map the permeability and saturation levels of the soil strata.
By identifying these high-risk hydraulic zones we enable the contractor to implement ground freezing or grouting programs before the TBM arrives.
This proactive ground improvement is a key component of risk management under BS 6164 Code of practice for health and safety in tunneling standards.
Pre-empting Hazardous Gas Incursions
Tunneling through organic clay or landfill layers risks encountering methane or hydrogen sulfide pockets. Sudden gas ingress forces a complete shutdown for ventilation upgrades and ATEX compliance.
We integrate resistivity profiling to detect the distinct electrical signatures of gas-filled voids, enabling the contractor to modify the TBM’s ventilation and slurry circuit design in advance.
Operational Comparison: Borehole Data vs. Continuous Geophysics
The reliability of the route plan depends on the density of the subsurface data. The following table contrasts traditional sampling with continuous scanning.
| Planning Metric | Traditional Vertical Boreholes | Continuous Geophysical Profiling |
| Data Continuity | Point-source data (High gaps) | Continuous linear stream |
| Foundation Detection | Misses offset piles | Maps lateral obstructions |
| Geological Risk | Misses pockets/lenses | Identifies anomalies |
| Cost Profile | High per-meter drilling cost | Lower per-meter scanning cost |
| TBM Safety | Reactive to face changes | Proactive parameter adjustment |
| Urban Disruption | Lane closures for rigs | Non-intrusive surface sensors |
Monitoring surface settlement from orbit
The excavation of large-diameter tunnels inevitably induces a settlement trough on the surface. Uneven settlement can crack pavement and damage historic masonry buildings located within the zone of influence.
We integrate Interferometric Synthetic Aperture Radar (InSAR) satellite data with ground-based robotic total stations to monitor surface movement in real-time.
This “Orbit-to-Ground” monitoring system detects millimeter-level subsidence allowing engineers to adjust TBM face pressure immediately. We deploy innovative special technologies to correlate this surface data with subsurface geological changes.
Establishing a Legal Shield Against Property Damage Claims
TBM transit causes anxiety among building owners above the alignment. Without a forensic pre-construction condition survey, any existing crack in a basement becomes a lawsuit against the project.
Our integrated monitoring creates an indisputable timeline of structural health, proving that pre-existing defects were not caused by the TBM’s passage.
Crossing existing tunnel infrastructure
New metro lines often must cross over or under existing rail tunnels or large-diameter interceptor sewers. The stress relief caused by the new excavation can cause the existing tunnel lining to ovalize or crack.
We map the exact position and condition of these legacy assets using underground infrastructure scanning protocols.
This data inputs directly into the Finite Element Analysis (FEA) models used to design the tunnel segment reinforcement at the crossing point.
This ensures that the interaction between the two structures serves as a reliable “Digital Twin,” fully compliant with ISO 19650 for organization and digitization of information throughout the asset lifecycle.
Delivering the project with geotechnical certainty
The feasibility of an urban tunnel depends on the quality of the subsurface intelligence. Investing in advanced route mapping eliminates the “blind spots” that lead to catastrophic machine entrapment and legal claims.
Project owners who demand this level of scrutiny ensure that their infrastructure is delivered safely and on schedule.
For verified TBM route planning and deep subsurface mapping rely on the capabilities of Maya Global Group. Our teams provide the geological data required to drive the future of urban transport.
