Constructing mixed-use transit-oriented developments directly above active railway corridors requires mapping the precise structural limits of the subterranean transit envelope before foundation work begins.
Accurate geophysical validation prevents accidental load-bearing interference and protects the continuous operation of the municipal transit system.
This geotechnical data dictates the safe placement of deep foundations and heavy load-transfer slabs without piercing the existing rail infrastructure.
Structural Clearances and Deep Foundations
Transit-oriented development projects maximize urban density by stacking commercial and residential spaces directly above subway stations.
Driving concrete piles or steel caissons into the ground requires maintaining absolute clearance from the transit tunnels below.
A direct strike on a subway vault roof causes immediate structural failure and paralyzes the city transit network. We map the exact subterranean footprint of the existing rail infrastructure.
Deploying multi-frequency ground penetrating radar, particularly systems enhanced with advanced radar algorithms, provides the structural engineers with a three-dimensional model of the transit envelope.
To further protect the asset integrity, this structural mapping must also account for dynamic envelope expansions, ensuring that high-speed trains have sufficient clearance as they tilt around tight subterranean curves.
This precise volumetric data allows developers to design foundation layouts that straddle the tunnels safely. This approach aligns directly with the Federal Transit Administration guidelines for joint development regarding shared infrastructure.
Validating Soil Density Around Transit Vaults
The vibration from decades of train traffic can degrade the soil surrounding older tunnel sections.
Placing heavy new structural loads onto this compromised sub-grade can cause the tunnels to buckle under the additional pressure. By utilizing advanced subsurface technologies, we measure the compaction and density of the surrounding earth.
This data dictates whether ground improvement techniques are necessary before vertical construction begins.
Additionally, continuous monitoring of groundwater drawdown is essential, as aggressive dewatering can induce soil consolidation and trigger differential settlement across the historic transit vaults.
In simple terms, differential settlement occurs when one side of a massive tunnel sinks faster than the other due to uneven soil moisture, causing the rigid concrete envelope to crack and flood.
Managing Subterranean Utilities in Transit Hubs
Subway stations serve as dense underground intersections for municipal utilities. High-voltage electrical feeds, communication trunks, and large storm drains often run parallel to the train tracks.
Trenching for a new mixed-use foundation without a verified utility map is a severe financial liability. We conduct sweeping geophysical surveys to locate these critical municipal feeds.
Implementing comprehensive underground infrastructure mapping protocols ensures that contractors can thread new conduits through the congested urban soil safely.
Reviewing past urban infrastructure case studies proves that knowing the exact layout prevents costly delays and emergency rerouting.
Isolating Water Infrastructure Risks
A ruptured water main directly above a subway station leads to severe flooding of the tracks and electrical substations. We trace the exact path of all active and abandoned water lines crossing the development site.
By utilizing advanced water system leak detection methods, we verify the structural integrity of the existing pipes before heavy machinery arrives.
For aging water mains near the site perimeter, applying trenchless pipe rehabilitation solutions secures the lines without requiring disruptive street excavations.
This validation supports the strict EPA regulations for safe drinking water and prevents devastating urban flooding events.
Operational Comparison

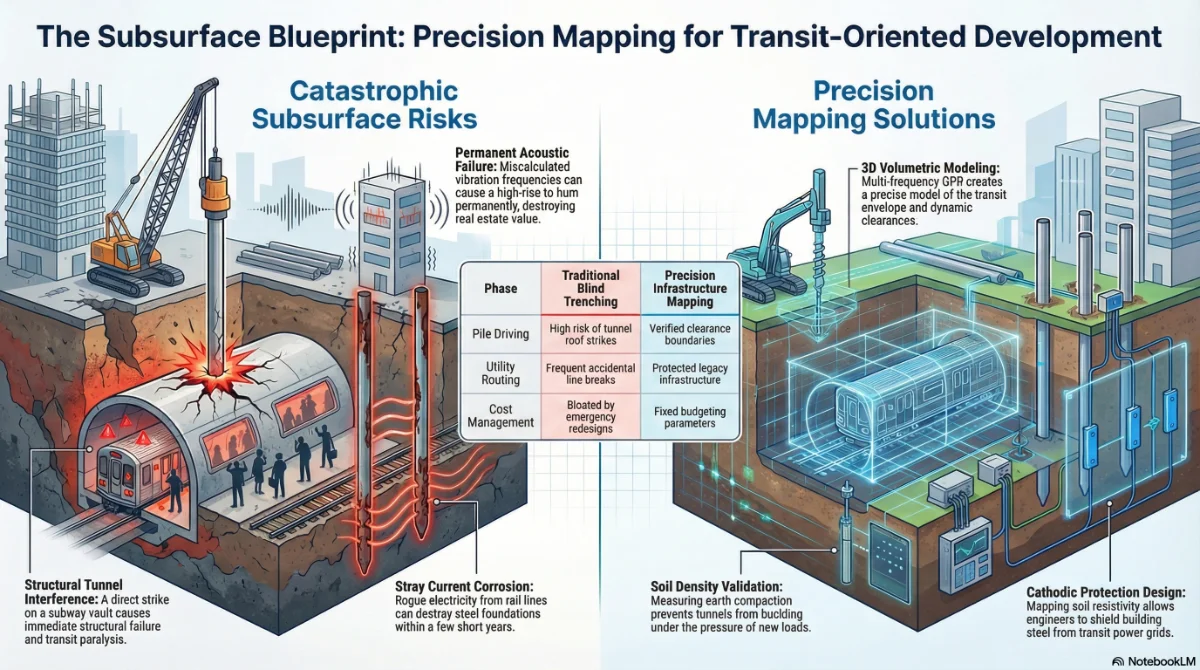

The viability of building above active transit lines depends entirely on managing subsurface spatial data. The following table contrasts conventional blind trenching with precision geophysical mapping.
| Construction Phase | Traditional Blind Trenching | Precision Infrastructure Mapping |
| Pile Driving | High risk of tunnel roof strikes | Verified clearance boundaries |
| Utility Routing | Frequent accidental line breaks | Protected legacy infrastructure |
| Vibration Control | Reactive structural patching | Proactive isolation design |
| Project Timeline | Delayed by unexpected rerouting | Continuous uninterrupted excavation |
| Cost Management | Bloated by emergency redesigns | Fixed budgeting parameters |
Combating Stray Current Corrosion
Electrified rail lines utilizing direct current power systems release stray electrical currents into the surrounding ground.
These rogue currents seek the path of least resistance, which is often the new steel foundations of the transit-oriented development.
In simple terms, stray current corrosion happens when rogue electricity leaks from the train tracks into the wet soil and rapidly eats away the structural steel of the new building foundations.
If left unchecked, this phenomenon can destroy the structural integrity of the deep foundations within a few short years.
We map the electrical resistivity of the soil to identify the primary pathways of these stray currents.
This intelligence allows engineers to design robust cathodic protection systems that shield the building from the transit system power grid. Following the NACE International standards for corrosion control ensures the long-term viability of the mixed-use structure.
Gas Line Detection Near Transit Corridors
Operating heavy equipment above active railway corridors requires extreme caution regarding buried gas lines. A severed high-pressure gas main near a subway ventilation shaft creates a dangerous explosion hazard.
Deploying proactive gas leak detection sweeps ensures that the excavation zone remains free from volatile vapors. We track the exact path of these explosive hazards, providing the machine operators with a safe digging envelope.
Seismic and Acoustic Vibration Mitigation
Trains generate significant amounts of acoustic and seismic energy as they pass beneath the surface. This mechanical vibration travels directly through the soil and into the foundation of the development above.
If the building frame absorbs this energy, the residential and commercial spaces become uninhabitable due to constant noise and shaking.
We deploy scanning arrays to map the geological profile and determine how mechanical waves propagate through the specific soil strata.
This data provides structural engineers with the precise inputs needed to install elastomeric bearing pads that decouple the building from the ground vibration.
This geotechnical foresight aligns directly with the American Public Transportation Association guidelines for noise and vibration in transit systems.
The absolute point of no return in transit-adjacent construction arrives when the elastomeric isolation pads are permanently grouted under the foundation columns.
If the acoustic frequency was miscalculated, the entire high-rise will permanently hum with the sound of passing trains, destroying its real estate value.
Integrating Smart Meter Telemetry
Modern mixed-use developments require complex telemetry to manage power and water distribution across hundreds of residential units and commercial spaces.
Running the communication wiring for a smart meter network requires clear, dedicated subterranean pathways that do not cross the high-voltage transit feeds.
We trace these legacy communication lines to identify the optimal routing for the new digital infrastructure.
Locking Down the Subterranean Blueprint
The ultimate point of no return in transit-oriented development occurs the moment the massive load-transfer slab is poured over the deep foundations.
Any unresolved structural clashes or utility conflicts locked beneath that concrete become permanent barriers that demand catastrophic demolition to correct.
Constructing a mixed-use tower above a live subway line requires total confidence in the subsurface layout. Removing the guesswork protects the heavy equipment operators and keeps the transit network running smoothly.
Knowing exactly where every tunnel, pipe, and cable resides ensures a smooth installation process from the first shovel scoop to the final concrete pour.
When cities demand higher density around transit hubs, developers must build upon a flawless geotechnical model.
For comprehensive mapping services and conflict prevention, Maya Global Group delivers the critical data required to build resilient urban infrastructure. We protect your vertical development from the ground down.
