Stadium construction demands absolute foundation certainty due to the massive dynamic loads involved.
Proceeding without a deep-subsurface void analysis invites catastrophic structural failure and indefinite project suspension.
Advanced geophysical mapping identifies hidden karst formations and soil anomalies before pile design begins. This data serves as the critical baseline for geotechnical engineering and risk mitigation.
The mechanics of void formation and structural risk
Large-scale venues impose unique stress factors on the ground, specifically the “live load” of tens of thousands of moving spectators.
If a stadium is built over undetected voids or loose soil zones, the vibration from crowds can accelerate soil collapse, leading to differential settlement or sudden sinkhole formation.
Standard geotechnical sampling, which relies on drilling boreholes at fixed intervals, often misses these anomalies if they sit between the drill points.
According to the U.S. Geological Survey (USGS) research on karst topography, sinkholes frequently develop in terrain where soluble rock like limestone lies beneath the surface.
However, urban stadiums also face risks from “man-made sinkholes” caused by collapsed sewers, abandoned basements, or forgotten utility tunnels.
Ignoring these hidden threats places the project in violation of International Building Code (IBC) foundation requirements, which mandate the identification of unstable soil conditions prior to permitting.
Conversely, redevelopment sites often conceal the inverse risk: ‘hard’ anomalies such as remnant reinforced concrete foundations or abandoned steel pilings.
Striking these unmapped obstructions during the drilling of deep-foundation caissons can cause immediate torque-shear failure in expensive rig equipment, halting operations for weeks.
Advanced geophysical technologies for deep detection
To ensure comprehensive coverage, engineers must move beyond spot-checking and utilize continuous scanning technologies.
We employ multi-frequency Ground Penetrating Radar (GPR) systems specifically calibrated for deep stratigraphic analysis. Unlike standard utility locators, our approach utilizes a hybrid geophysical strategy.
We deploy 132-channel high-frequency arrays for ultra-high resolution mapping of the upper strata, coupled with specialized low-frequency deep-penetration antennas capable of reaching depths of up to 15 meters.
This dual-frequency combination ensures that neither small near-surface voids nor deep-seated sinkhole ‘throats’ are missed.
This high-density data acquisition capability is not merely theoretical; field validations demonstrate that this multi-sensor approach achieves a detection accuracy rate of 99.
9%, effectively eliminating the uncertainty associated with traditional random sampling. Crucially, the system quantifies the ‘overburden thickness’—the specific depth of the rock or soil layer bridging the cavity.
This metric is the primary determinant for structural engineers when calculating the Safe Working Load (SWL) of the ground to ensure it can withstand the dynamic vibration of massive crowds.
Financial Control via Volumetric Analysis
Discovering a void is only the first step; fixing it requires material injection.
Without precise mapping, remediation becomes a ‘blind check’ scenario where contractors inject grout indefinitely until refusal, often inflating costs by 300%.
A 3D radar scan calculates the exact cubic volume of the subsurface cavity.
This data allows the developer to lock in fixed-price remediation contracts based on verified quantities rather than open-ended time-and-material agreements.
The role of hydrogeology in stability analysis
Water is the primary driver of sinkhole formation.
Undetected leaks from existing underground infrastructure can wash away fine soil particles over time, creating large cavities under pavement or foundations.
This process, known as “piping,” is particularly dangerous because it occurs silently until the ground capability is exceeded.
Therefore, a complete survey must map the moisture content across the entire stadium footprint.
We utilize innovative special technologies, specifically satellite-based soil moisture monitoring, to detect large-scale saturation anomalies from orbit before deploying ground teams.
Integrating this macro-data with on-site water system leak detection sensors allows us to pinpoint zones of active erosion with surgical precision. Addressing these hydraulic factors is as important as reinforcing the structural steel.
FEMA guidelines for hazard mitigation emphasize that controlling groundwater flow is the most effective method for preventing sinkhole expansion.

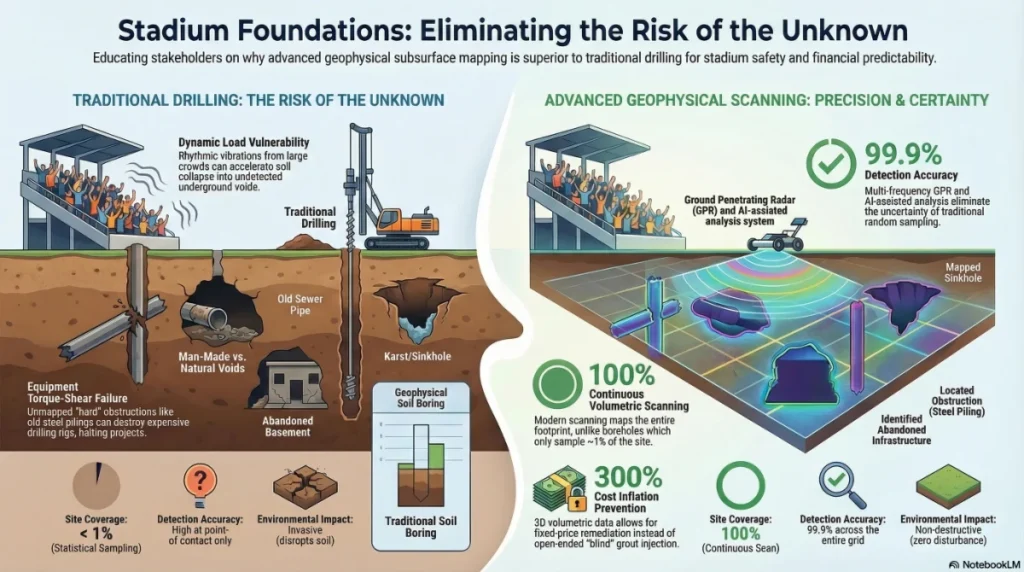

Operational Comparison: Borehole vs. Geophysical Scan
The industry is shifting from point-based sampling to area-wide scanning. The following table contrasts the effectiveness of traditional soil boring with modern geophysical surveys.
| Operational Metric | Traditional Soil Boring (Drilling) | Geophysical Area Scanning (GPR/HDR) |
| Site Coverage | < 1% (Statistical sampling) | 100% (Continuous volumetric scan) |
| Void Detection | Hit-or-miss probability | High probability mapping of anomalies |
| Data Continuity | Interpolated data between holes | Unbroken cross-section profiles |
| Speed of Execution | Slow (requires heavy rig setup) | Rapid (mobile non-intrusive scanning) |
| Environmental Impact | Invasive (disrupts soil) | Non-destructive (zero disturbance) |
| Detection Accuracy | High at point of contact only | 99.9% accuracy across surveyed grid |
Leveraging AI for anomaly classification
Analyzing the vast amount of data generated by a 132-channel system requires sophisticated processing power.
Artificial Intelligence algorithms are now used to review radar grams and identify subtle dielectric contrasts that the human eye might miss.
These algorithms flag potential void signatures based on pattern recognition from thousands of previous sinkhole case studies.
By applying these advanced ground penetrating radar systems, we convert raw signal data into actionable engineering maps.
This AI-assisted interpretation removes false positives and focuses the geotechnical team’s attention on genuine high-risk zones.
This streamlined process aligns with ASCE 38-22 standards for subsurface utility engineering, ensuring that the data quality meets the rigorous demands of large-scale capital projects.
Insurance and liability protection
For stadium developers, the cost of a survey is a fraction of the insurance deductible for a foundation failure claim.
Insurers increasingly require proof of comprehensive subsurface due diligence before underwriting policies for projects in karst-prone regions.
A verified report from a reputable survey firm serves as a legal shield.
It demonstrates that the developer exercised the highest standard of care in investigating the site conditions.
Establishing a Defensible Geotechnical Baseline Report (GBR)
Litigation regarding structural settlement often arises years after construction.
A comprehensive pre-construction survey creates a permanent digital timestamp of the subsurface conditions at the moment of site handover.
In the event of future claims regarding adjacent construction damage or natural soil shifts, this dataset serves as forensic evidence, differentiating between pre-existing geological features and new, liability-generating events.
Furthermore, if voids are detected, the survey data guides the remediation process.
Grouting contractors use the 3D maps to target their injection points with precision, filling the voids without wasting material.
Post-remediation verification scans then confirm that the ground has been stabilized to the required bearing capacity.
Securing the foundation of public venues
The longevity of a stadium is determined before the first column is erected.
Ensuring the ground is solid is the only way to guarantee the safety of the structure and the public it serves.
Developers who invest in high-definition subsurface mapping eliminate the geological variables that threaten project timelines and financial solvency.
For verified void detection and infrastructure mapping, rely on the proven capabilities of Maya Global Group. Our engineering teams are ready to deploy advanced scanning solutions for your next major development.
