Decommissioning retail fuel sites carries distinct liability risks from undocumented Underground Storage Tanks (USTs) and hydrocarbon plumes.
Failing to identify an orphan tank prior to property transfer transfers the remediation burden entirely to the buyer under federal strict liability statutes.
A multi-layered geophysical survey delimits these subsurface liabilities providing the data requisite for accurate remediation budgeting and regulatory closure.
The legacy of undocumented fuel systems
Gas stations built between the 1950s and 1980s often underwent multiple ownership changes and configuration updates.

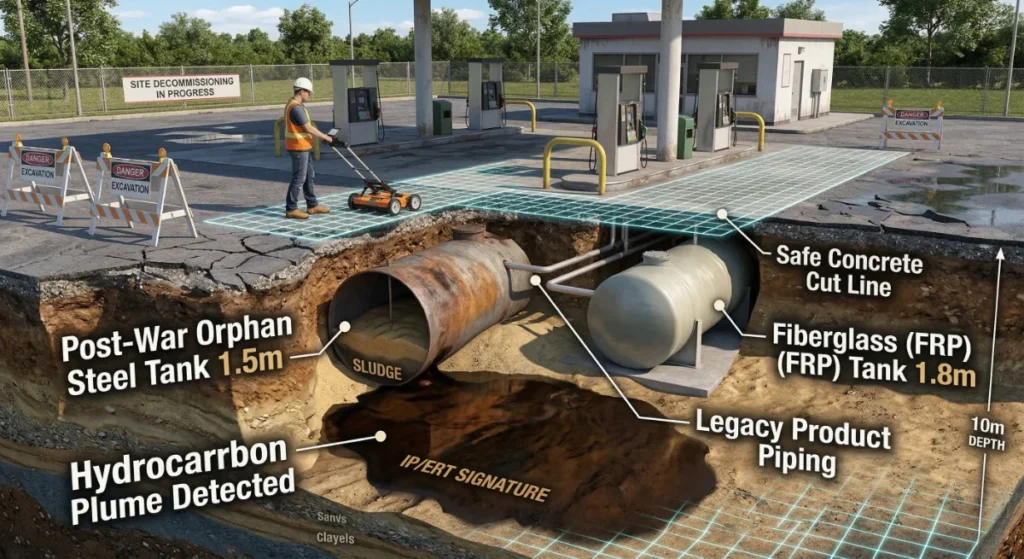

Previous operators frequently abandoned old steel tanks in place rather than removing them leaving “orphan” vessels filled with sludge or water.
These forgotten assets rarely appear on modern state environmental databases yet represent a massive cleanup cost.
We utilize high-sensitivity magnetometry to detect the ferrous signature of these legacy tanks. This allows us to locate buried steel vessels even if they have been paved over or built upon by subsequent structures.
This forensic approach is essential for satisfying the ASTM E1527-21 Standard Practice for Environmental Site Assessments.
Distinguishing Filled ‘Ghost Tanks’ from Native Soil
Many legacy tanks were filled with sand or slurry and left in place creating a “ghost” asset that blends into the surrounding soil.
Striking a sand-filled tank during grading can still destroy excavation equipment and release trapped residual sludge.
We analyze the stratigraphic disturbance patterns and the tank shell reflection to identify these solid obstacles that standard scanning often overlooks.
We also map the associated concrete “deadman” anchors and hold-down straps, ensuring the rigging crew severs these connections before attempting the lift.
Differentiating metallic and fiberglass assets
Modern sites utilize fiberglass-reinforced plastic (FRP) tanks which are invisible to magnetic sensors.
Relying solely on metal detection will miss these non-conductive tanks leading to catastrophic strikes during excavation.
We deploy dual-frequency Ground Penetrating Radar (GPR) to image the dielectric contrast between the tank material and the surrounding backfill.
This technology resolves the geometry of both metallic and fiberglass tanks defining their volume and orientation.
This comprehensive mapping aligns with 40 CFR Part 280 technical standards for tank system characterization and release detection as outlined by the EPA Office of Underground Storage Tanks.
Accelerating the ‘No Further Action’ (NFA) Letter
The ultimate goal of any brownfield cleanup is obtaining an NFA letter from the state regulator which allows construction to proceed.
Ambiguous subsurface data leads to repeated rounds of sampling and regulatory hesitation delaying this critical approval by years.
Our precise volumetric mapping provides the regulator with the definitive evidence needed to close the file, reducing the timeline from remediation to revenue-generating construction.
Mapping hydrocarbon plumes and soil contamination
The tank itself is only half the risk as the surrounding soil may be saturated with leaked fuel.
Drilling blind test borings risks puncturing a tank or missing the contaminant plume entirely resulting in a false negative report.
We integrate Induced Polarization (IP) alongside resistivity to map the chargeability of the soil.
Since degraded hydrocarbons exhibit a distinct chargeability signature compared to clean groundwater, this method discriminates between actual contamination and simple clay lenses.
This data allows environmental consultants to place soil borings in the “hot zones” for accurate laboratory analysis, supporting the API Publication 1628 for assessment of underground releases.
Defining the Property Line Contamination Boundary
Liability creates exponentially when a plume migrates off-site to neighboring residential properties. Drilling blindly near the property line carries the legal risk of verifying a problem that wasn’t previously documented.
Our non-intrusive survey determines if the plume has crossed the boundary allowing the legal team to formulate a defense strategy before alerting third parties.
Safety during slab demolition and tank removal
Demolishing a gas station forecourt involves cutting through thick reinforced concrete that may trap explosive vapors.
Saw-cutting into a vapor pocket or striking a product line generates sparks that can ignite residual fuel gases.
We use high-frequency concrete scanning using innovative special technologies to map the reinforcement grid and void spaces under the slab. This identifies safe cut lines that avoid the tops of tanks and shallow product piping.
This protocol protects the demolition crew and ensures compliance with NFPA 326 Standard for the Safeguarding of Tanks. Field verification confirms that our volumetric tank mapping achieves a dimensional accuracy rate of 99.
9%, allowing demolition contractors to order the exact crane size and transport trucks needed for removal without costly over-estimation.
Operational Comparison: Standard Locating vs. Multi-Physics Survey
The methodology used determines the certainty of the site model. The following table contrasts basic locating with advanced geophysical characterization.
| Detection Metric | Standard Metal Detection | Multi-Physics Geophysical Survey |
| Target Type | Steel tanks only | Steel, Fiberglass & PVC Lines |
| Contamination Data | None | Plume Delineation (ERT/IP) |
| Depth Accuracy | Qualitative | Quantitative (XYZ Verified) |
| Product Lines | Often missed | Traceable via GPR/Induction |
| Demolition Risk | High (Spark potential) | Low (Mapped clearance) |
| Regulatory Value | Low (Insufficient for closure) | High (Supports NFA Letter) |
Tracing abandoned product piping
The piping network connecting the tanks to the dispensers is often the primary source of leaks. Legacy product lines were frequently abandoned in place without being purged creating linear hazards full of flammable liquid.
Our survey traces these non-metallic lines from the tank farm to the pump islands. We identify the exact depth and trajectory of these conduits allowing for their safe extraction or grouting.
This ensures that no hazardous materials are left behind during the redevelopment process.
Securing state cleanup funds
Many states offer UST trust funds to reimburse property owners for cleanup costs but eligibility requires proving the tank’s existence and condition.
Submitting a vague claim without geospatial evidence often leads to denial of reimbursement.
We provide certified mapping reports that serve as the technical proof required by state environmental agencies.
This documentation substantiates the claim that an unknown tank was discovered allowing the developer to access millions in potential remediation funding.
Redeveloping with environmental confidence
Converting a gas station into retail or housing is a high-yield investment that hinges on environmental certainty. Investing in accurate underground infrastructure mapping eliminates the toxic variables that kill real estate deals.
Developers who prioritize this subsurface verification ensure a smooth path to regulatory closure and vertical construction.
For verified UST detection and brownfield site mapping rely on the capabilities of Maya Global Group. Our teams deliver the forensic intelligence required to close the book on legacy contamination.
