Underground Detection Solutions for Military Base Modernization Projects With Security and Access Restrictions
Modernizing military installations requires absolute subsurface certainty to maintain operational readiness during construction.
Excavating blindly near command centers or airfields risks severing mission-critical fiber optics and compromising national security.
A military-grade geophysical survey delivers verified utility data while adhering to strict clearance protocols and radio-silence mandates.
Navigating access control and clearance protocols
Civilian surveying teams are frequently unprepared for the rigorous entry requirements of active Department of Defense (DoD) installations.
Project timelines often collapse when unvetted personnel are denied access at the gate due to background check failures.
Operations on secure bases require field technicians who possess the necessary security credentials and understand the protocols for working in restricted areas.
We deploy teams accustomed to operating under the United States Army Corps of Engineers (USACE) Safety and Health Requirements Manual, specifically EM 385-1-1.
This operational readiness ensures that the survey crew can mobilize immediately without administrative friction.
Compliance with these access standards, alongside the technical mandates of UFC 3-535-01 (Underground Utility Infrastructure), is critical for keeping military construction (MILCON) projects on schedule.
Preventing Funding Forfeiture in the MILCON Cycle
Military construction funding operates on strict ‘use-or-lose’ fiscal timelines.
A two-week work stoppage caused by an accidental fiber cut can push a project past the Fiscal Year deadline, risking the total loss of appropriated funds.
By delivering validated subsurface data upfront, we ensure that the excavation phase proceeds at the cadence required to execute the budget.
Mapping airfield lighting and fueling hydrants
Airfield modernization projects involve upgrading runway lighting and hydrant fueling systems while keeping the tarmac operational.
Striking a pressurized JP-8 fuel line or a 5kV lighting loop results in an immediate environmental hazard and the grounding of aircraft.
These assets are often encased in thick reinforced concrete that blocks standard locating signals.

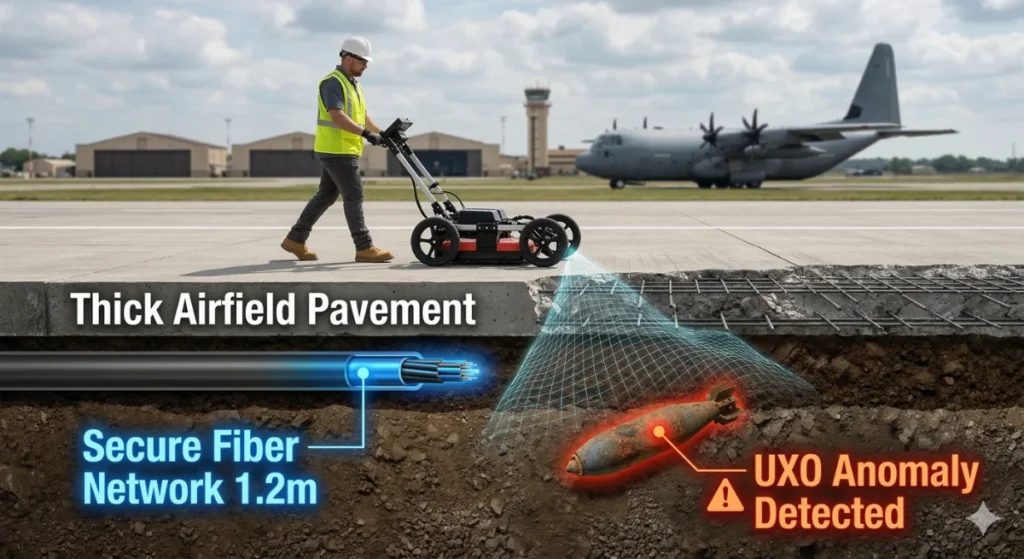

We utilize multi-channel Ground Penetrating Radar (GPR) arrays to penetrate the heavy airfield pavement.
This technology resolves the complex mesh of rebar and dowel bars to identify the conductive and non-conductive utilities beneath.
This non-destructive approach aligns with the Unified Facilities Criteria (UFC) 3-260-01 regarding airfield and heliport planning and design.
Supporting Rapid Runway Repair (RRR) Capabilities
In a conflict scenario, base engineers must repair bombed runways within hours. This capability depends on knowing exactly where the underlying voids and utilities are located before the damage occurs.
Our forensic mapping creates a baseline ‘Subsurface Digital Twin’ of the airfield, providing the critical intelligence needed to execute emergency crater repairs without hitting secondary hazards.
Detecting Unexploded Ordnance (UXO) in construction zones
Many bases sit atop decades of historical training ranges where dud munitions remain buried. Standard utility locators cannot distinguish between a harmless pipe and a live artillery shell.
Excavating in these zones without specialized detection carries a lethal risk to the construction force.
We integrate Time-Domain Electromagnetic Induction (TDEMI) sensors into our survey workflow. This advanced magnetometry discriminates between linear utility signatures and the distinct ferrous footprint of potential UXO.
By identifying these anomalies early we allow Explosive Ordnance Disposal (EOD) teams to clear the path, satisfying the requirements of DoD Manual 6055.
09-M (DoD Ammunition and Explosives Safety Standards) for construction in munition response sites.
Protecting Sensitive Compartmented Information Facilities (SCIFs)
Work surrounding intelligence facilities requires a specialized approach to avoid breaching physical security measures.
Drilling into the slab of a SCIF to install new conduits can accidentally compromise the facility’s acoustic or electromagnetic shielding. Such a breach creates a vulnerability that foreign actors could exploit.
We employ high-frequency concrete scanning using innovative special technologies to map the slab reinforcement and embedded security meshes.
This ensures that any penetration points are located in safe zones that do not violate the integrity of the secure perimeter.
This forensic mapping is essential for maintaining accreditation standards during facility upgrades.
Handling Classified Infrastructure Discovery (SIPRNet)
Discovering an undocumented cable near a command bunker presents a security dilemma. Identifying a classified network link on a public map acts as a beacon for adversaries.
We employ a ‘Blind Marking’ protocol for sensitive zones, where anomalies are flagged generically in the field and the specific characterization is delivered exclusively to the Base Civil Engineer via secure channels.
Operational Comparison: Commercial vs. Mil-Spec Surveying
The requirements of a military environment differ vastly from civilian construction. The following table contrasts standard commercial practices with mil-spec protocols.
| Operational Metric | Standard Commercial Survey | Military-Grade SUE Investigation |
| Personnel Vetting | Basic ID check | DBIDS / Security Clearance |
| Data Security | Cloud-based processing | On-premise / Offline processing |
| Radio Protocol | Standard transmission | HERO (Hazards of Electromagnetic Radiation to Ordnance) safe |
| UXO Awareness | None | Integrated TDEMI scanning |
| GPS Accuracy | Standard RTK | Anti-Jamming / SAASM-Compliant GNSS |
| Reporting Standard | PDF Sketch | CADD/GIS compliant with SDSFIE |
Data sovereignty and offline processing
Mapping a military base generates sensitive geospatial data that cannot be uploaded to public cloud servers.
Transmitting the location of critical power feeds or communication trunks over an unsecured network is a violation of operational security (OPSEC).
We utilize a strictly offline data processing workflow. All GPR and electromagnetic data is processed on air-gapped field computers ensuring that the digital map never leaves the secure environment.
This protocol ensures full interoperability with the Spatial Data Standards for Facilities, Infrastructure, and Environment (SDSFIE 4.0), allowing seamless integration into the installation’s master geospatial database.
This aligns with NIST FIPS 140-3 standards for the protection of sensitive but unclassified information.
Managing radio silence zones
Certain areas of a base such as ammunition storage points or listening posts enforce strict radio silence.
Active transmitters used in standard utility locating can interfere with sensitive electronics or trigger electrically initiated explosive devices.
We deploy passive sensing arrays that detect utilities without emitting active radio frequencies.
This passive detection capability allows us to map underground infrastructure within Hazards of Electromagnetic Radiation to Ordnance (HERO) zones without violating safety stand-off distances.
De-conflicting Survey Frequencies with Airfield Operations
Active GPR sensors can inadvertently interfere with sensitive Instrument Landing Systems (ILS) or ground radar. Before mobilizing on the flight line, we coordinate our specific frequency spectrum with Airfield Operations.
This frequency de-confliction ensures that our subsurface scans do not create ‘ghost targets’ on the air traffic control screens.
Ensuring mission readiness during construction
The primary objective of any military construction project is to enhance capabilities without degrading current readiness.
Investing in comprehensive subsurface intelligence eliminates the utility strikes that cause power outages and communication blackouts.
Base commanders who demand this level of verification ensure that their installation remains fully operational throughout the modernization cycle.
For secure base mapping and clearance rely on the capabilities of Maya Global Group. Our teams deliver the forensic data required to build the defense infrastructure of the future.
