Port infrastructure upgrades require precise subsurface intelligence to navigate complex utility networks and historical contamination zones.
Excavating without a verified map risks rupturing high-voltage shore power lines or breaching hazardous containment layers, triggering indefinite operational shutdowns.
Non-intrusive geophysical surveys provide the forensic data needed to upgrade capacity while maintaining strict environmental compliance.
Navigating the conductivity challenge in saline environments
Marine terminals present a hostile environment for standard geophysical equipment.
High soil salinity creates a conductive barrier that absorbs the signal of conventional radar systems, rendering them blind below the pavement.
We utilize specialized Ground Penetrating Radar (GPR) frequencies specifically calibrated for high-conductivity soils.
This allows us to penetrate the saline saturation zone and resolve utility signatures that standard equipment misses.
Furthermore, while high-frequency GPR maps the concrete reinforcement, it cannot penetrate deep enough to assess the anchor system.
To counter this, we deploy Deep-Search Fluxgate Magnetometers to pinpoint the ferromagnetic signature of steel tie-rods buried deep within the backfill.
This dual-sensor approach detects corrosion or snapping in the anchor zones, preventing catastrophic apron collapse under the weight of mobile harbor cranes.
We deploy innovative special technologies to fuse these magnetic and radar datasets into a unified structural health map.
Mapping contamination plumes without breaking ground
Most industrial ports sit atop decades of legacy fill, often containing heavy metals, hydrocarbons, or PFAS.
The primary objective of a port survey is “Virtual Potholing” to identify utilities without physically penetrating the cap that seals these contaminants.
Traditional vacuum excavation creates hazardous waste slurry that requires expensive disposal.
By utilizing non-intrusive electromagnetic induction and GPR, we map the subsurface stratigraphy to delineate the boundary between clean fill and contaminated layers.
This data allows engineers to design utility corridors that remain within the clean zone, avoiding the massive financial liability associated with disturbing toxic sediment.
This approach aligns with EPA Brownfields program guidelines for safe infrastructure development on prior-use industrial sites.
Securing shore power and high-voltage retrofits
The global shift toward “Cold Ironing” or shore-to-ship power requires the installation of massive high-voltage conduits through already congested terminal yards. Striking a live 6.
6kV or 11kV line results in immediate lethality and port-wide power failure. These lines are often shielded or encased in concrete banks that are difficult to detect with simple magnetic locators.
We employ a multi-sensor fusion strategy, combining active line tracing with passive power cable detection.
This ensures that both the new high-voltage feeds and the legacy low-voltage lighting circuits are mapped with 3D precision.
By cross-referencing active signal induction with passive power sweeps, field audits confirm that this multi-physics system maintains a detection accuracy rate of 99.
9%, providing the absolute certainty required when trenching near lethal 11kV circuits.
Crucially, our specialized receivers are equipped to filter out the aggressive interference generated by Impressed Current Cathodic Protection (ICCP) systems used to prevent quay wall corrosion.
Standard locators often mistake these stray ground currents for live power lines, leading to false positives.
Our technology isolates the 50/60Hz utility frequency from the DC pulses of the ICCP, ensuring that corrosion control systems are not misidentified as dangerous high-voltage feeders.
Compliance with IEC/IEEE 80005 standards for Utility Connections in Port depends on the rapid and safe deployment of this underground electrical infrastructure, ensuring that the high-voltage handshake between land and vessel occurs without grid instability.
Enabling Port Automation and AGV Deployment
Modern terminals are rapidly transitioning to Automated Guided Vehicles (AGVs) which rely on transponders buried in the pavement for navigation.
Our surveys map the existing rebar mesh and ferrous interference zones with high precision.
This data allows automation engineers to install magnetic guidance grids in ‘quiet’ zones, preventing signal interference that causes robot downtime and logistics bottlenecks.

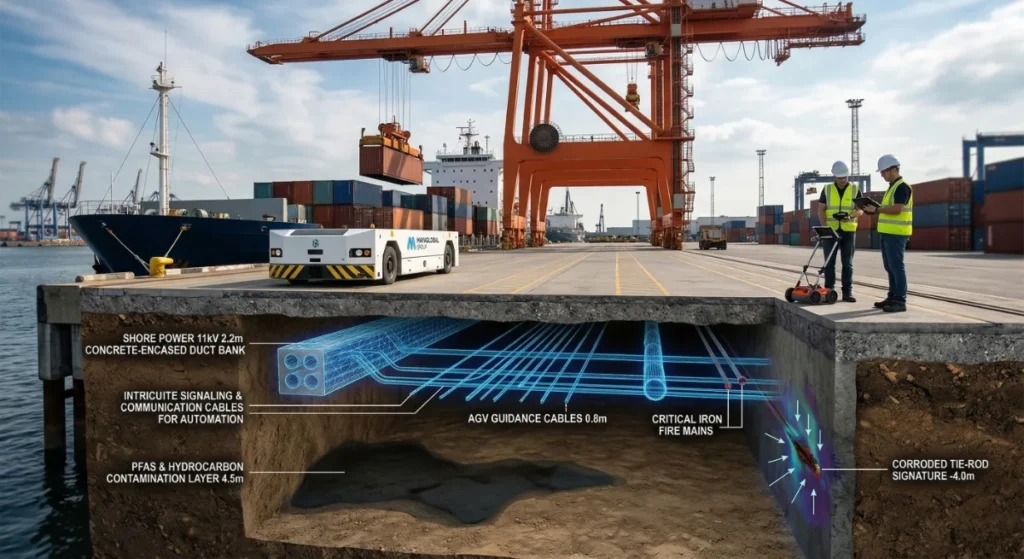

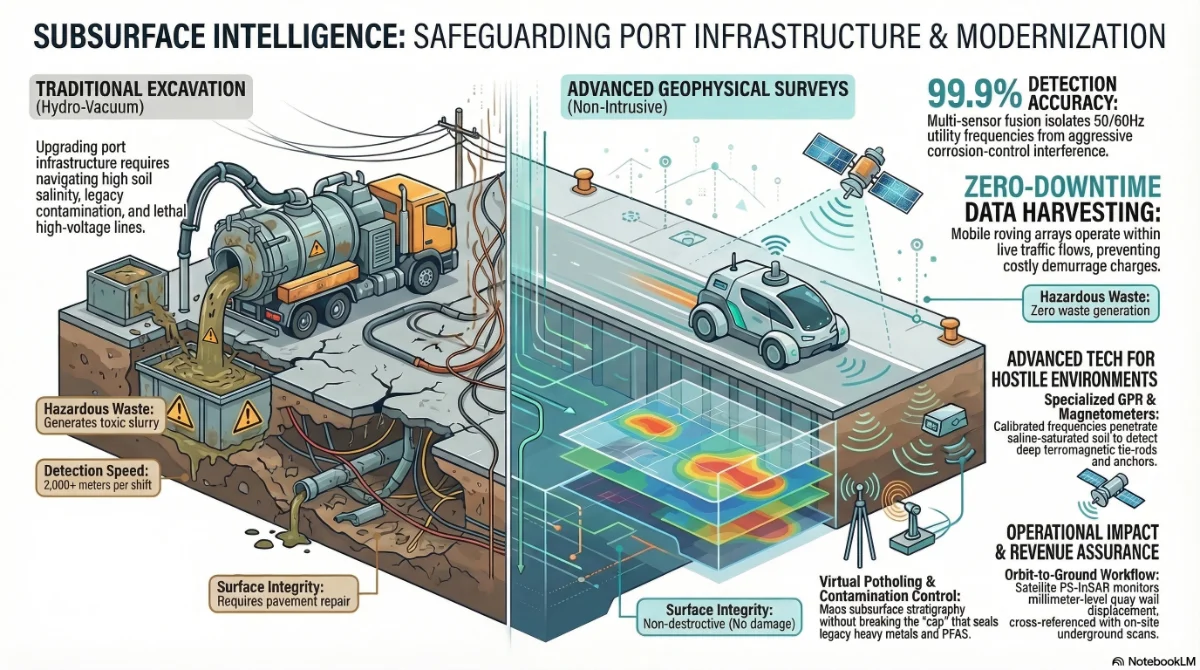

Operational Comparison: Hydro-Excavation vs. Geophysical Survey
Port operators cannot afford to close lanes for weeks of exploratory digging. The following table contrasts the impact of physical excavation versus digital mapping.
| Operational Metric | Hydro-Vacuum Excavation (Potholing) | Geophysical Area Scanning (GPR/EM) |
| Terminal Impact | High (Lane closures required) | Low (Mobile roving arrays) |
| Hazardous Waste | Generates toxic slurry | Zero waste generation |
| Detection Speed | 5-10 meters per shift | 2,000+ meters per shift |
| Surface Integrity | Requires pavement reinstatement | Non-destructive |
| Depth Capability | Limited by boom reach | Deep profiling (up to 15m) |
| Data Output | Visual confirmation only | Digital 3D integration (BIM) |
Revenue Assurance: Zero-Downtime Surveying
In a marine terminal, time is strictly monetized. Blocking a crane rail or a truck gate for potholing triggers immediate demurrage charges and reduces container throughput.
Our non-intrusive approach operates seamlessly within live traffic flows, ensuring that the critical intermodal exchange between ship, rail, and truck continues uninterrupted while data is harvested.
Managing fire main and drainage integrity
The fire suppression system is the most critical safety asset in a fuel or container terminal.
Saltwater corrosion frequently compromises these iron pipes, leading to silent underground leaks that undermine the pavement foundation. A sudden collapse of a reach-stacker due to a washout is a preventable disaster.
We integrate acoustic water system leak detection sensors to audit the health of the fire loop and storm drainage network. Identifying these leaks early allows for targeted repair rather than emergency replacement.
This proactive maintenance is essential for meeting the requirements of the National Fire Protection Association (NFPA) 307 standard for marine terminals.
Monitoring quay wall stability from orbit
Port structures are subject to constant dynamic loading and tidal erosion.
We employ PS-InSAR (Persistent Scatterer Interferometry) to monitor millimeter-level vertical displacement.
Unlike standard satellite radar, PS-InSAR utilizes the port’s rigid infrastructure—cranes, bollards, and concrete aprons—as permanent reflectors, providing a stable historical record of quay wall movement.
This macro-level view is cross-referenced with on-site underground infrastructure scans. If the satellite detects sinking, our ground teams deploy to find the specific void or pipe collapse causing it.
This “Orbit-to-Ground” workflow provides a comprehensive structural health monitoring system that exceeds standard visual inspections.
Establishing a liability firewall
Port construction contracts are litigious by nature. Providing a certified subsurface utility map (SUM) at the ASCE 38-22 Quality Level B or A standard transfers the risk of utility strikes away from the port authority.
It demonstrates that the owner performed due diligence in identifying site conditions.
Operating within ISPS Restricted Zones
Port security is paramount. Our teams are vetted and experienced in operating under the strict protocols of the International Ship and Port Facility Security (ISPS) Code.
We utilize passive scanning equipment that is certified non-interfering with port radar and communication systems, ensuring that the survey process never triggers a security alarm or violates the integrity of the restricted zone.
Ensuring the flow of global commerce
The efficiency of a port is determined by what lies beneath its pavement.
Investing in forensic subsurface mapping safeguards the critical utilities that power cranes, suppress fires, and fuel logistics.
Port directors who demand this level of intelligence ensure that their terminals remain operational, compliant, and profitable.
For verified marine terminal mapping and utility detection, rely on the capabilities of Maya Global Group. Our teams are certified to operate in high-security maritime zones and deliver the data required for modernization.
