Installing underground stormwater detention systems in developed urban grids requires massive volume excavation within tightly constrained footprints.
Mapping existing utility lines prior to digging prevents structural clashes and ensures that the new subterranean vaults integrate cleanly with surrounding municipal infrastructure.
This verifiable geotechnical data dictates the precise depth and orientation of the storm chambers to avoid disrupting active service networks.
The Spatial Geometry of Stormwater Vaults
Urban environments leave very little room for surface water management. Developers must place massive retention crates or concrete vaults beneath parking lots and access roads.
These systems consume enormous amounts of subterranean real estate. Carving out this volume means navigating a maze of legacy infrastructure that has occupied the space for decades.
To maximize site utility, this spatial planning must also account for future accessibility, ensuring that maintenance access ports do not overlap with high-voltage pedestrian thoroughfares.
Furthermore, mapping the seasonal high groundwater table is critical, as an empty concrete detention vault can act like a massive subterranean boat, risking catastrophic hydrostatic uplift if buoyancy forces are not counteracted by sufficient soil cover.
Deploying multi-frequency ground penetrating radar provides a clear picture of the available working volume.
By utilizing comprehensive underground mapping protocols, contractors can slide these massive structures into the ground without hitting adjacent conduits. This careful placement satisfies the stringent Environmental Protection Agency regulations for municipal stormwater discharges by ensuring the system functions safely.
Navigating the Urban Subsurface
City streets hide layers of forgotten telecommunication lines and abandoned water mains. A standard utility plan rarely reflects the actual physical location of these pipes.
Digging a massive pit based on old blueprints invites devastating utility strikes. We scan the entire proposed footprint to identify these hidden hazards.
Looking at recent urban development case studies, locating these unmapped lines early prevents catastrophic budget overruns and keeps the heavy machinery moving safely.
For instances involving complex soil types, deploying an advanced radar technology algorithm provides the highest resolution imaging of the subterranean grid.
Gravity and Invert Elevations
Stormwater detention systems do not rely on mechanical pumps. They require precise gravity slopes to collect surface runoff and release it slowly into the municipal sewer.
In simple terms, gravity-fed drainage requires an uninterrupted downward slope, meaning even a minor vertical conflict with an unmapped fiber optic duct can render the entire detention basin hydraulically useless.
You cannot bend a gravity pipe over an obstacle without losing the required flow rate. Our subsurface sweeps determine the exact depth of all intersecting utilities.
This allows civil engineers to design invert elevations that maintain a perfect downward trajectory. Following the Federal Highway Administration hydraulic engineering guidelines ensures these drainage networks handle peak flow rates efficiently.
Conflicting with Deep Foundations
Placing a high-capacity detention tank near an existing commercial building requires careful attention to the structural footings.
The zone of influence surrounding a commercial building foundation carries the immense weight of the superstructure down into the bedrock.
Breaching this load-bearing soil envelope with a deep detention pit requires robust shoring and secant pile walls. We use advanced subsurface technologies to map the lateral spread of these underground foundations.
Our data provides the geotechnical engineers with the spatial boundaries needed to design these retaining structures effectively.
The Threat of Soil Subsidence and Voids
Removing thousands of cubic yards of soil alters the structural dynamics of the surrounding area.
If the adjacent ground contains undocumented voids caused by old leaking pipes, the vibration from the excavators can trigger an immediate collapse.
Put simply, when water escapes a pressurized legacy pipe and washes away the surrounding sub-grade, it creates a hidden underground cavern that can instantly swallow heavy excavation equipment the moment the asphalt is cut.
Discovering these weak zones is mandatory before lowering concrete vaults into the trench.
By implementing precise water system leak detection methods around the perimeter, we identify compromised soil before it fails. As demonstrated in a recent international leak detection project, finding these hidden leaks is a primary factor in preventing massive ground failures.
This proactive assessment directly supports the ASTM standard practices for soil classification regarding site preparation and structural readiness.
Operational Comparison

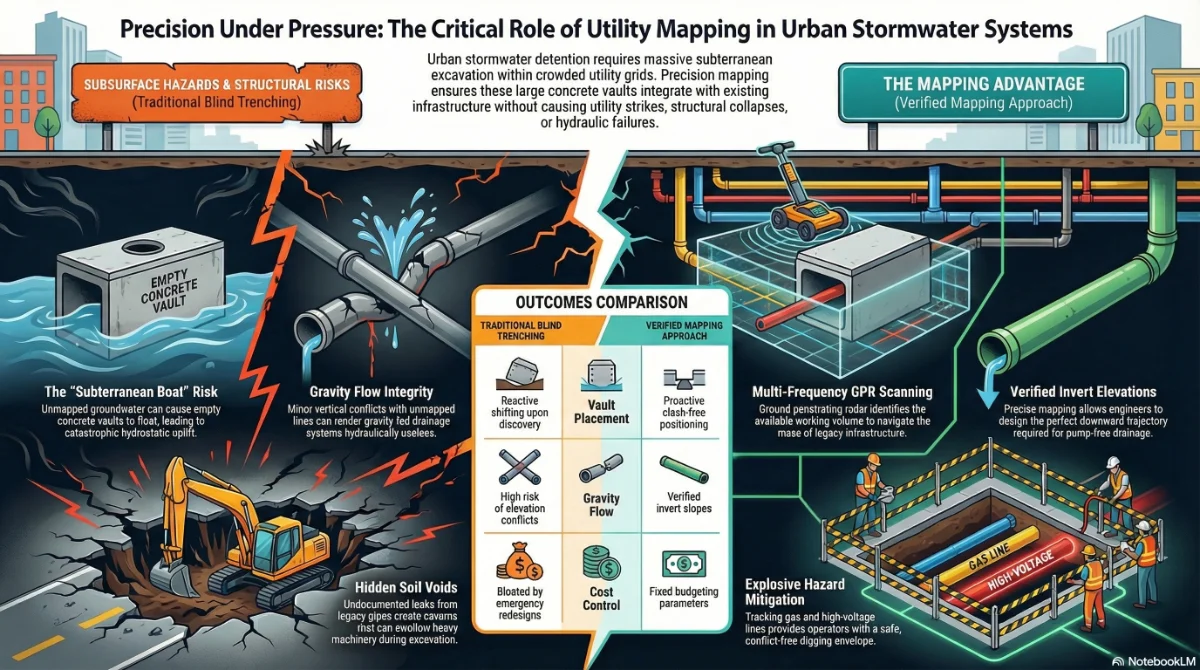

The success of a stormwater installation depends on the accuracy of the ground data. The following table contrasts standard blind trenching with a verified mapping approach.
| Construction Phase | Traditional Blind Trenching | Verified Mapping Approach |
| Vault Placement | Reactive shifting upon discovery | Proactive clash-free positioning |
| Gravity Flow | High risk of elevation conflicts | Verified invert slopes |
| Utility Safety | Frequent accidental line strikes | Protected legacy infrastructure |
| Project Timeline | Delayed by unexpected rerouting | Continuous uninterrupted excavation |
| Cost Control | Bloated by emergency redesigns | Fixed budgeting parameters |
Integrating with Existing Storm Sewers
The ultimate point of no return in stormwater management is the final connection to the live municipal sewer main.
Tying a misaligned or improperly sloped detention system into the city grid transfers local flooding liabilities directly to the public right-of-way, triggering massive civic fines.
A detention system is only effective if it connects seamlessly to the city outflow network. The tie-in points are often deep underground and surrounded by a dense web of other utilities.
Miscalculating the connection angle means digging a wider trench, which increases traffic disruption and paving costs.
Accurately identifying the material composition of the receiving sewer main allows contractors to select the proper tapping saddles and core drilling bits.
This prevents fracturing brittle clay or unreinforced concrete lines during the final connection phase. We map the exact coordinates and depth of the municipal connection points.
This adherence to industry best practices aligns with the Water Environment Federation stormwater management framework for municipal integration.
If the city tie-in pipe shows severe degradation, exploring trenchless pipe rehabilitation solutions can secure the connection without requiring additional street excavation.
Managing Gas and Electrical Crossings
Cutting through a live gas line while digging a stormwater pit is a worst-case scenario. Urban environments pack gas mains and high-voltage feeds dangerously close to surface drainage channels.
Running proactive gas leak detection sweeps ensures that the excavation zone is free from volatile vapors. We track the exact path of these explosive hazards, providing the machine operators with a safe digging envelope.
Securing the Subterranean Blueprint
The absolute point of no return in detention basin construction occurs the moment the massive concrete vaults are lowered into the trench.
Any unresolved utility clashes trapped beneath those structures become permanent barriers that demand catastrophic demolition to correct.
A successful water management project requires total confidence in the subsurface layout. Removing the guesswork protects the heavy equipment operators and keeps the construction schedule intact.
Knowing exactly where every pipe and cable resides ensures a smooth installation process from the first shovel scoop to the final pavement pour.
For precise utility mapping and conflict prevention, Maya Global Group delivers the critical data required to build resilient infrastructure. We protect your project from the ground down.
