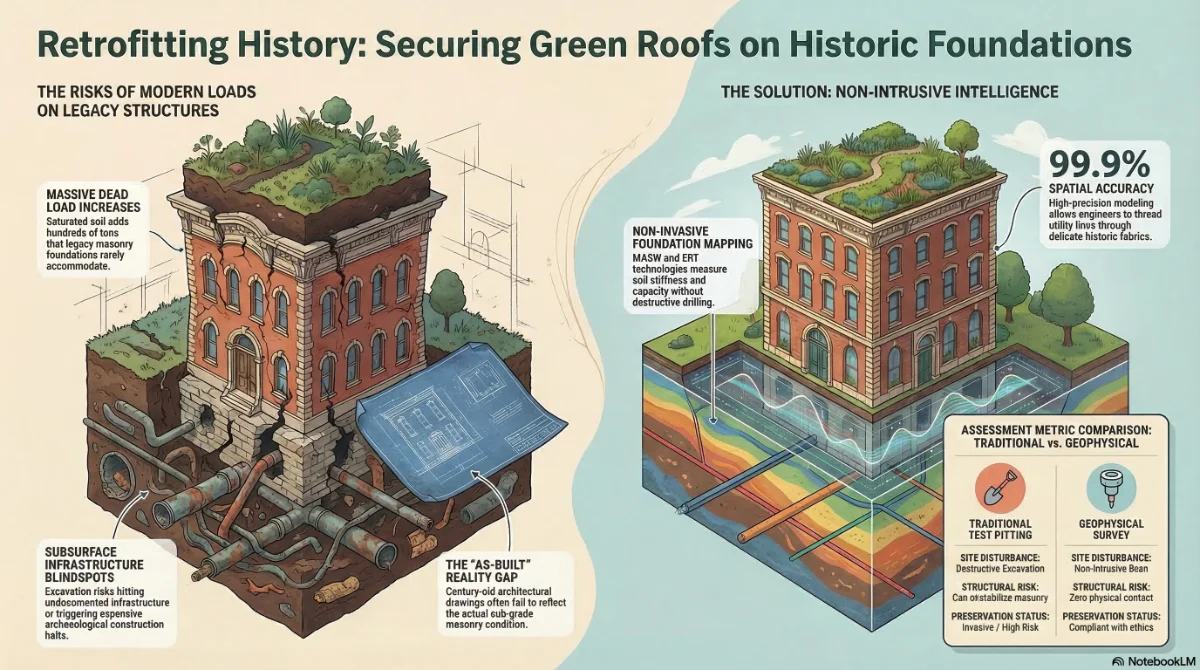

Retrofitting historic structures with green roofs necessitates a rigorous evaluation of the subsurface foundation capacity and utility pathways.
Adding hundreds of tons of saturated soil to a masonry building invariably requires new vertical load-bearing elements that must be grounded without disrupting existing footings.
A geophysical survey maps the subterranean constraints ensuring that the new structural skeleton and irrigation systems can be integrated without compromising the archaeological integrity of the site.
Verifying foundation capacity for increased dead loads
Historic masonry foundations were rarely designed to accommodate the significant weight of intensive rooftop gardens.
Before structural engineers can approve the retrofitting of a green roof they must verify the geometry and condition of the existing spread footings.
Relying on century-old architectural drawings often leads to catastrophic settlement calculations as these documents rarely reflect the “as-built” reality of the sub-grade masonry.
We employ Multi-channel Analysis of Surface Waves (MASW) alongside Electrical Resistivity Tomography (ERT) to measure the shear-wave velocity of the soil.
This provides a direct calculation of the soil’s stiffness and bearing capacity without invasive drilling.
This assessment is critical for compliance with ASCE 7-22 (Minimum Design Loads) and the International Existing Building Code (IEBC) regarding the addition of significant gravity loads to legacy structures.
Routing high-volume irrigation and drainage lines
A rooftop ecosystem requires a dedicated water supply and a robust stormwater management system.
Retrofitting these high-flow conduits into a historic building requires threading pipes through congested basements and foundation slabs without damaging the building envelope.
A blind core drill through a basement floor can easily sever an existing sewer line or destabilize a load-bearing pilaster.
Our surveys utilize high-frequency concrete scanning to identify safe vertical chases for these new utility risers.
We map the optimal subsurface route for connecting the rooftop irrigation system to the municipal water main.
This includes verifying the integrity of the connection points using acoustic water system leak detection protocols to prevent future saturation of the historic masonry.
Field verification confirms that our predictive modeling achieves a spatial accuracy rate of 99.9%, allowing MEP engineers to thread high-pressure water lines through the delicate historic fabric with surgical precision.
Integrating stormwater retention systems
Modern green roof codes often mandate the installation of underground cisterns to manage overflow during heavy storm events.
Excavating a vault for a retention tank in a historic courtyard presents a high risk of encountering undocumented infrastructure or archaeological remnants.
We deploy multi-sensor arrays to scan the proposed excavation footprint. This identifies potential conflicts with abandoned heating oil tanks or coal chutes that frequently dot the subsurface of pre-war properties.
This proactive mapping supports the design of “Blue-Green” infrastructure that aligns with EPA Green Infrastructure guidelines for urban stormwater management.
Avoiding Combined Sewer Overflow (CSO) Conflicts
Many historic districts operate on antiquated combined sewer systems.
Connecting a new intensive green roof drainage system directly to these legacy pipes can cause basement sewage backups during peak storm events.
Our survey maps the invert elevations and capacity of existing laterals, allowing engineers to design on-site detention systems that decouple the roof load from the overburdened municipal grid.
Navigating archaeological sensitivities
Historic buildings are often situated atop layers of previous habitation. Disturbing the soil for new column footings or utility trenches can trigger federal archaeological preservation mandates.
A halt in construction to assess an unexpected artifact discovery can bankrupt a project timeline.
Our non-intrusive underground infrastructure investigation acts as a digital archaeological survey.
By identifying soil anomalies consistent with historical foundations or privies we allow the design team to adjust the location of new structural piles.
This approach preserves the historical record while allowing the project to proceed, satisfying the requirements of the National Park Service (NPS) Preservation Briefs and the Secretary of the Interior’s Standards for Rehabilitation.
Safeguarding Historic Tax Credits (HTC) Eligibility
Development projects utilizing Federal Historic Preservation Tax Incentives risk disqualification if the rehabilitation damages the building’s structural character.
Cracking a historic foundation during utility trenching can trigger a ‘non-compliance’ ruling from the National Park Service (NPS), forfeiting millions in tax credits.
Our non-destructive mapping provides the forensic proof of due diligence required to satisfy State Historic Preservation Offices (SHPO) and protect the project’s financial stack.
Mitigating Vibration Damage to Lime Mortar Foundations
Historic masonry foundations rely on friable lime mortar that is highly susceptible to construction vibration. Installing micro-piles for roof support creates seismic waves that can de-bond the historic stones.
We deploy seismic monitors during the subsurface investigation to establish baseline thresholds, ensuring that subsequent construction activities remain within the safe vibration limits for unreinforced masonry.

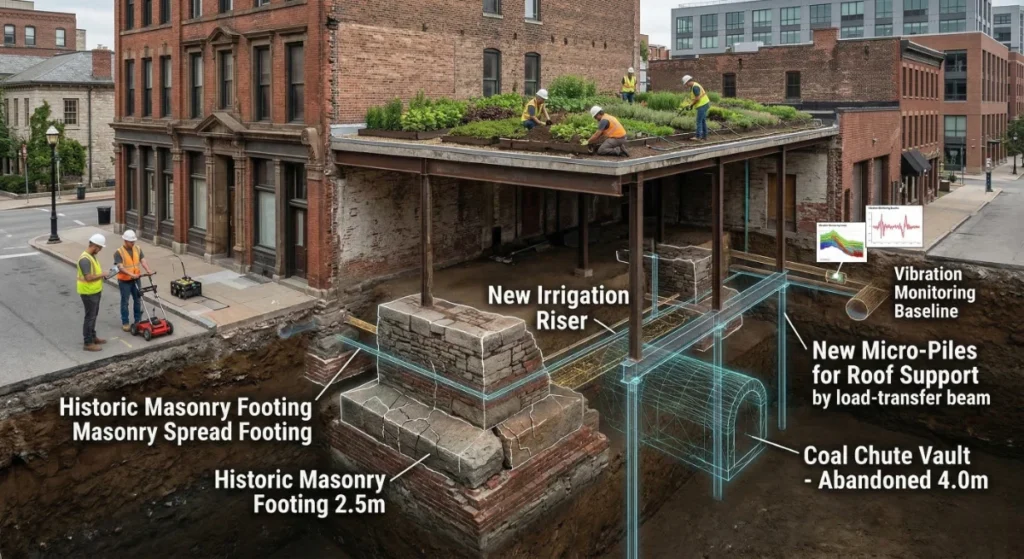

Structural reinforcement and column base mapping
To support the new roof load engineers often must insert steel columns down through the building to the ground.
These new columns require new micro-piles or spread footings that must fit tightly between the existing historic foundations.
We utilize innovative special technologies to create a 3D map of the existing foundation spread.
This precision allows the structural engineer to design “needle beams” or offset footings that transfer the load without undermining the original masonry walls.
This level of detail is essential for preventing differential settlement between the old and new structural systems.
Operational Comparison: Foundation Assessment Methods
The following table contrasts traditional test pitting with modern geophysical surveying for historic retrofits.
| Assessment Metric | Traditional Test Pitting | Geophysical Subsurface Survey |
| Site Disturbance | Destructive (Requires excavation) | Non-Intrusive (Surface scan) |
| Data Coverage | Single point of data | Continuous profile of foundation |
| Structural Risk | Can destabilize loose masonry | Zero physical contact |
| Depth Penetration | Limited by excavation safety | Deep profiling (up to 10m) |
| Cost Efficiency | High labor & restoration cost | Low operational footprint |
| Preservation Status | Invasive (Risk to fabric) | Compliant with preservation ethics |
Ensuring Long-Term Asset Viability
A green roof is a premium amenity that drives higher tenant retention and lease rates. However, if the subsurface drainage fails, the resulting water damage can turn a rooftop asset into a basement liability.
By mapping the hydraulic performance of the foundation soils beforehand, we ensure that the premium invested in the roof yields sustainable returns without compromising the building’s envelope.
Mitigating water intrusion risks at the base
Introducing automatic irrigation to a site increases the volume of water moving around the foundation. Historic basements with lime mortar are highly susceptible to rising damp if the subsurface drainage is compromised.
Our survey includes a hydro-geological assessment to map the water table and existing drainage tiles. This ensures that the new irrigation runoff is directed away from the porous historic walls.
Proper subsurface drainage design is critical to maintaining the longevity of the building, as outlined by the General Services Administration (GSA) Historic Preservation guidelines.
Cultivating a sustainable future on historic foundations
The successful integration of a green roof onto a heritage asset requires a fusion of modern engineering and preservation ethics.
Investing in accurate subsurface intelligence ensures that the new vertical loads are safely grounded without erasing the past.
Developers who prioritize this deep-foundation verification ensure that their green initiatives are built on a solid and legally compliant base.
For verified foundation mapping and historic site preservation surveys rely on the capabilities of Maya Global Group. Our teams deliver the geotechnical certainty required to elevate historic properties.
