De-Risking Urban Geothermal: Subsurface Borefield Mapping

Retrofitting commercial properties with Ground-Source Heat Pump (GSHP) systems requires drilling deep vertical borefields in constrained urban lots.

Excavating without a verified subsurface map risks severing existing utility feeds or compromising the building foundation.

A comprehensive geophysical survey defines the available drillable volume ensuring the loop field can be installed safely and efficiently without disrupting current operations.



Optimizing borefield layout in constrained lots

Urban retrofits generally lack the open acreage available for horizontal loop fields requiring vertical boreholes that penetrate hundreds of feet deep.

Parking lots and service courtyards are often congested with undocumented storm drains and electrical conduits that prevent standard grid spacing.

Relying on original site plans to position these rigs is a liability risk as these documents rarely reflect decades of facility upgrades.

We employ a multi-sensor geophysical investigation to map the “drillable real estate” within the property lines.

We also utilize acoustic water system leak detection protocols to verify the exact path of active water mains that may traverse the proposed drilling zone.

This data allows the mechanical engineer to design a high-density loop field that maximizes thermal exchange capacity while threading the needle between existing infrastructure.

This precision planning is essential for meeting the rigorous design standards of ANSI/CSA/IGSHPA C448 (Design and Installation of Ground Source Heat Pump Systems) for commercial loop installation.

Avoiding Thermal Interference from Urban Infrastructure

District steam lines and high-voltage duct banks emit heat that can degrade the performance of adjacent geothermal loops.

Placing a heat rejection loop next to a hot utility line creates a ‘thermal short circuit’ that cripples the system’s cooling efficiency.

We map these heat sources to ensure the borefield is thermally isolated from the surrounding urban metabolism.

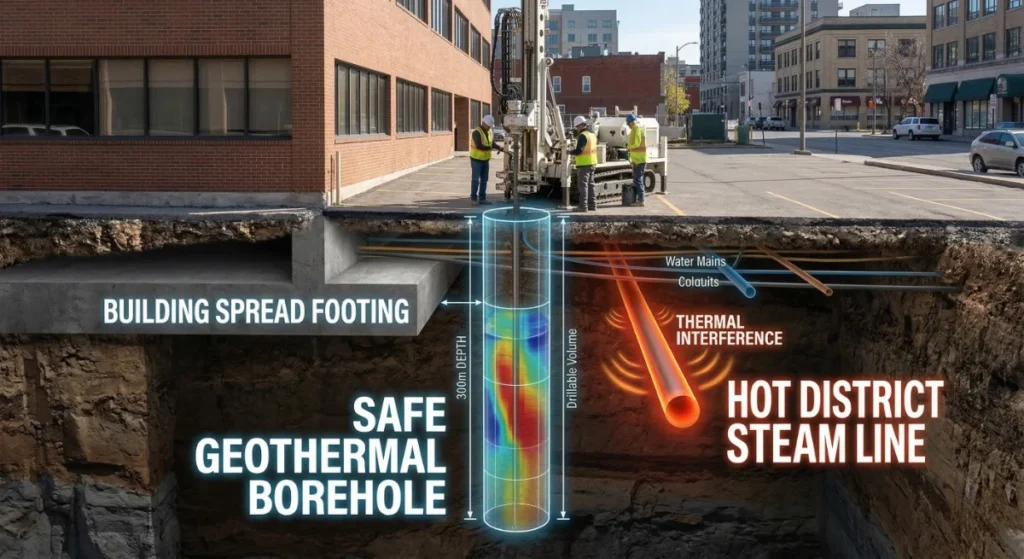

Geothermal borefield and drilling equipment.
Visualizing safe geothermal boreholes for effective energy management in buildings | AI-generated image for illustrative purposes

Verifying soil thermal properties

The efficiency of a geothermal system relies entirely on the ability of the ground to accept or reject heat.

Drilling a test bore without first understanding the subsurface stratigraphy can lead to an undersized system that fails to heat the building or an oversized system that destroys the Return on Investment (ROI).

We employ Electrical Resistivity Tomography (ERT) to map the moisture content and stratigraphy variations across the entire borefield volume.

Since soil moisture is the primary driver of thermal conductivity, this 3D resistivity model allows us to predict heat exchange rates accurately before a single test bore is drilled.

This data provides the inputs required to calculate the specific thermal diffusivity of the site, ensuring the system meets ASHRAE 90.1 Energy Standard requirements for sizing ground heat exchangers.

Securing Investment Tax Credits (ITC) through Efficiency Validation

Under the Inflation Reduction Act (IRA), commercial geothermal projects qualify for significant tax credits only if they meet strict coefficient of performance (COP) targets.

Inaccurate soil thermal data leads to poor system design that misses these efficiency benchmarks, potentially costing the owner millions in forfeited federal incentives.

Our verified thermal mapping ensures the inputs for the energy model are precise, safeguarding the project’s financial eligibility.

Preventing ‘Frac-Out’ and Drilling Fluid Loss

Drilling into an undetected void or abandoned utility tunnel can cause a sudden loss of circulation, forcing thousands of gallons of pressurized drilling mud to erupt into nearby basements or storm drains.

This ‘frac-out’ scenario triggers immediate EPA fines and work stoppages.

Our void detection protocols identify these hazard zones, allowing the driller to case off the borehole or adjust the grouting pressure to contain the fluid.



Protecting structural foundations and footings

Vertical drilling operations exert significant vibration and ground disturbance. Placing a borehole too close to the spread footing of an existing structure can undermine the soil bearing capacity and cause settlement.

We utilize innovative special technologies to map the precise extent of the building’s subterranean footprint.

This ensures that the drilling plan respects the “Zone of Influence” of the existing foundation and prevents structural damage during the retrofit.

This forensic mapping is critical for adhering to the International Building Code (IBC) requirements regarding excavation near existing structures. Field verification confirms that our foundation mapping achieves a spatial accuracy rate of 99.

9%, providing the geotechnical engineer with the confidence to place boreholes within inches of the building’s load-bearing zone without risk.



Managing aquifer protection and environmental compliance

Penetrating multiple aquifers with vertical grout columns carries a risk of cross-contamination.

Regulatory agencies require strict isolation of groundwater zones to prevent surface runoff from polluting deep drinking water sources.

Our hydro-geological surveys identify the depth and confinement of local aquifers. This intelligence allows the drilling contractor to select the appropriate casing and grouting strategy to seal the borehole effectively.

This proactive approach aids in satisfying the groundwater protection mandates of the National Ground Water Association (NGWA).



Operational Comparison: Blind Drilling vs. Surveyed Installation

The success of the retrofit depends on the accuracy of the subsurface data. The following table contrasts standard estimation with verified mapping.

Installation Metric Standard Estimation Geophysical Survey Guided
Borehole Placement Rigid grid (High conflict risk) Adaptive layout (Conflict free)
System Sizing Rule of thumb (Risk of failure) Data-driven (Optimized)
Utility Risk High (Reliance on one-call) Low (Verified clearance)
Drilling Speed Slow (Caution required) Fast (Known conditions)
Regulatory Status Potential permitting delays Streamlined approval
Cost Predictability High variance Fixed scope

Preventing ROI Destruction via Oversizing

Mechanical engineers often oversize loop fields by 20% ‘just to be safe’ when subsurface data is vague.

This ‘safety factor’ unnecessarily inflates the capital expenditure (CAPEX) and kills the project’s Return on Investment.

By defining the exact thermal capacity of the site, we allow engineers to right-size the system, optimizing the balance between drilling costs and energy savings.



Validating load-bearing capacity for drill rigs

Geothermal drilling rigs are heavy industrial machines that must operate on existing parking decks or pavement.

Driving a 30-ton rig onto an unreinforced asphalt lot can cause immediate pavement failure and immobilize the equipment.

We assess the subsurface soil density and pavement thickness prior to mobilization. This analysis determines if the existing hardscape can support the live load of the drilling equipment or if temporary matting is required.

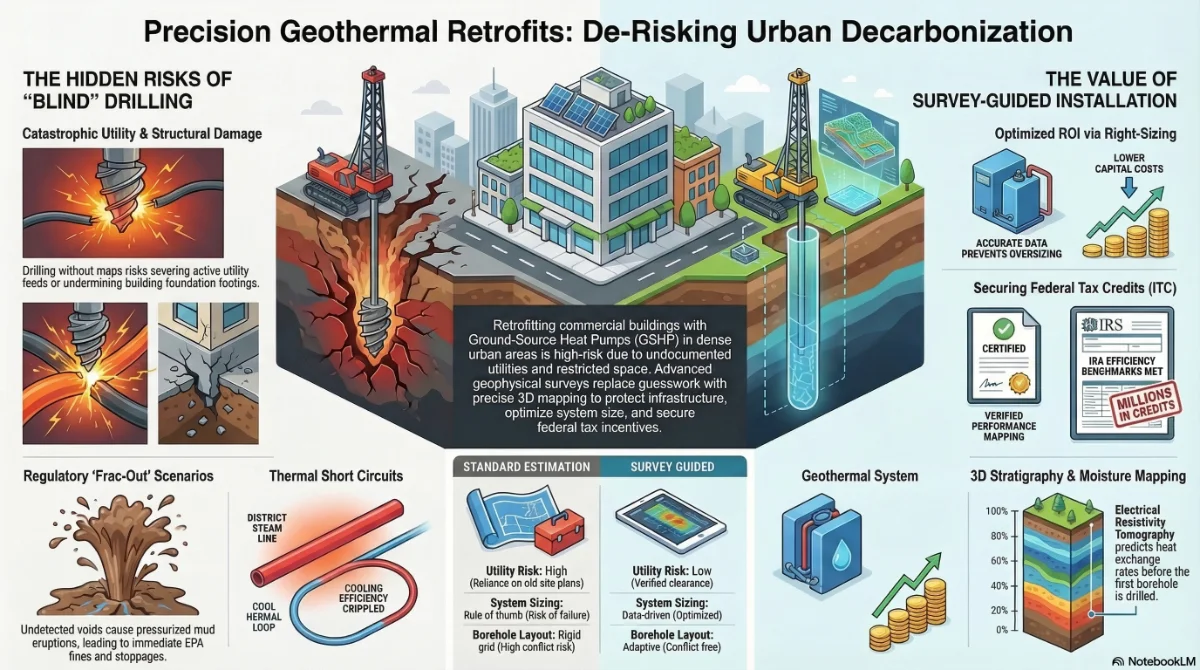

Geothermal retrofitting infographic
Unveiling the importance of pre-installation surveys for geothermal systems in urban settings.

Facilitating the path to Net-Zero

Transitioning a commercial building to geothermal energy is a complex engineering feat.

Investing in accurate underground infrastructure mapping eliminates the geological variables that threaten budget and schedule.

Property owners who prioritize this due diligence ensure their green energy projects are built on a solid foundation.

For verified geothermal site mapping and utility clearance rely on the capabilities of Maya Global Group. Our teams deliver the geotechnical intelligence required to decarbonize the built environment.
