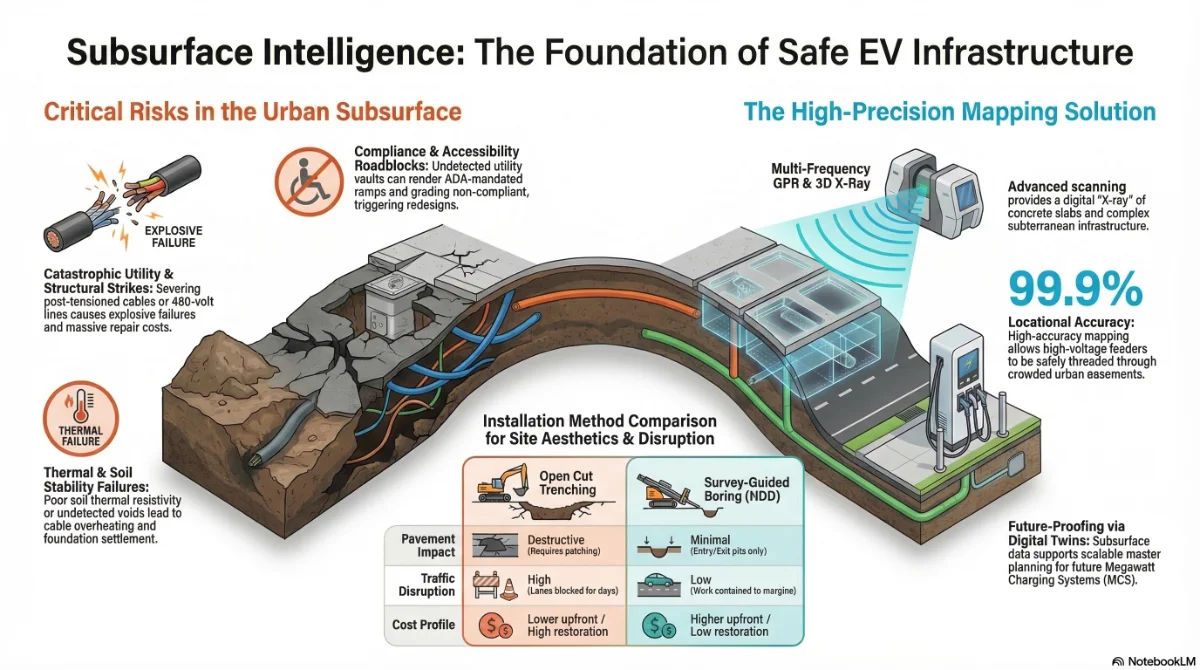

Navigating the density of urban subsurface networks
Urban parking lots are frequently situated atop complex layers of abandoned and active infrastructure.
Relying on outdated facility drawings to route new 480-volt conduit runs is a liability gamble that developers cannot afford.
A single strike on a fiber optic line or a gas main can stall a deployment project for months and incur massive repair costs.

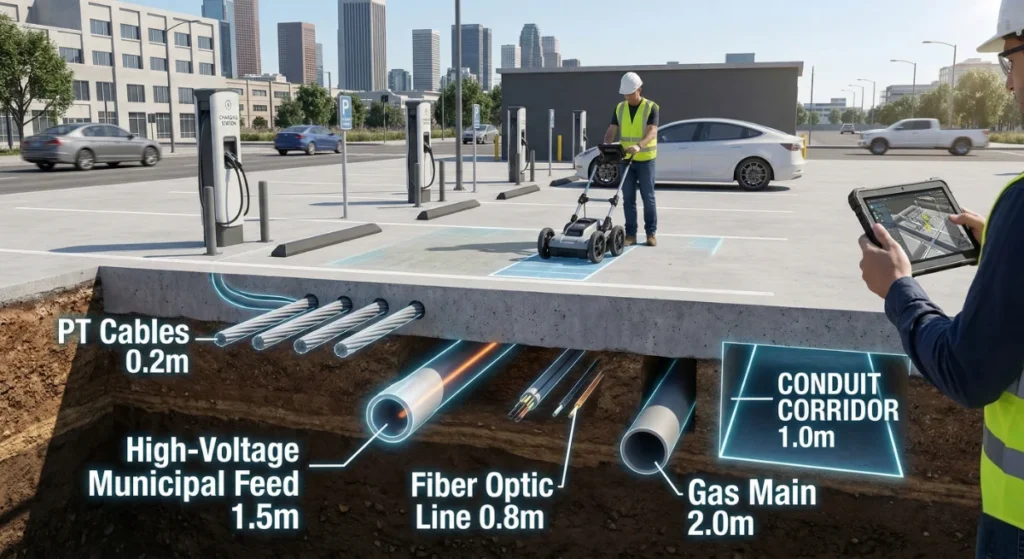

We utilize a multi-frequency Ground Penetrating Radar (GPR) protocol to dissect these layers. This allows us to identify open corridors for trenching that avoid the web of existing utilities.
This approach ensures compliance with the Department of Energy Alternative Fuels Data Center guidelines for site selection and safety planning.
Optimizing Site Layout for ADA Accessibility
Federal regulations mandate strict slope and grading requirements for accessible EV charging stalls.
Discovering a shallow utility vault exactly where a wheelchair ramp needs to be graded can render a site non-compliant and trigger costly redesigns.
Our topographical and subsurface mapping ensures that the chosen locations for accessible chargers are free of underground obstructions that would prevent proper pavement leveling.
Verifying Ground Bearing Capacity for Heavy Switchgear
DC Fast Charging stations require massive transformers and switchgear cabinets that exert significant point loads.
Placing this heavy equipment over an undetected subsurface void or a washout zone can lead to foundation settlement and catastrophic electrical faults.
Our GPR scans identify low-density soil zones, allowing civil engineers to reinforce the pad site before the equipment arrives.
Structural integrity in multi-level parking decks
Installing chargers in vertical parking structures presents a unique structural risk.
Most modern garages utilize post-tensioned (PT) concrete cables which, if severed during core drilling, can snap with explosive force and compromise the building’s stability.
Standard utility locators cannot detect these non-conductive or shielded cables embedded within the slab.
We employ high-frequency innovative special technologies specifically designed for concrete scanning. This structural radar provides a 3D X-ray view of the slab, identifying the precise depth and location of rebar and PT cables.
This data allows engineers to mark safe drilling spots for conduit risers, aligning with the safety standards of the Post-Tensioning Institute for structural modifications.
Power capacity planning and grid tie-ins
The transition to DC Fast Charging (DCFC) requires establishing heavy-duty connections to the municipal grid.
Finding a viable path from the street transformer to the new switchgear often involves traversing public easements and crossing other critical lifelines.
Our surveys map the tie-in points with centimeter accuracy. This data supports the electrical engineering team in designing the shortest and most cost-effective duct bank routes.
Field verification confirms that our multi-sensor mapping achieves a locational accuracy rate of 99.
9%, providing the confidence needed to thread high-voltage feeders through crowded easements without triggering a cascading utility failure.
Accurate mapping is essential for adhering to NEC (National Electrical Code) Article 625 requirements regarding separation distances between high-voltage conductors and other utility services.
Mitigating Electromagnetic Interference (EMI) with Legacy Lines
High-amperage DC cables generate substantial electromagnetic fields. Running these feeders parallel to unshielded legacy copper telecom lines can corrupt data transmission for the entire facility.
Our survey identifies these sensitive communication assets, enabling a segregation strategy that maintains data integrity for the host property.
Managing soil thermal properties for high-power cables
High-amperage charging cables generate significant heat that must be dissipated into the surrounding soil to prevent insulation failure.
If the thermal resistivity of the soil is too high the cables can overheat and derate, reducing the charging speed and lifespan of the station.
We integrate thermal soil analysis compliant with IEEE 835 Standard Power Cable Ampacity Tables.
By mapping the thermal conductivity profile (Rho value) of the trench route, engineers can accurately calculate cable derating factors and select the appropriate thermal backfill material.
This prevents the “thermal bottleneck” effect that plagues poorly planned high-power installations.
Fleet Depot Electrification: The High-Stakes Environment
For logistics companies, a charging failure means missed deliveries. Fleet depots require a density of underground conduit that far exceeds public stations.
We map the complex subterranean mesh needed to support simultaneous high-power charging for dozens of vehicles, ensuring that the ‘mission-critical’ uptime of the depot is designed into the ground up.
Operational Comparison: Open Trenching vs. Directional Boring
The choice of installation method significantly impacts facility operations. The following table contrasts traditional trenching with survey-guided boring.
| Installation Metric | Open Cut Trenching | Survey-Guided Directional Boring (HDD) |
| Pavement Impact | Destructive (Requires patching) | Minimal (Entry/Exit pits only) |
| Traffic Disruption | High (Lanes blocked for days) | Low (Work contained to margins) |
| Utility Risk | Visible but exposed | Blind (Requires high-accuracy map) |
| Soil Management | High volume of spoil removal | Low volume of drill fluids |
| Cost Profile | Lower upfront / High restoration | Higher upfront / Low restoration |
| Site Aesthetics | Visible scar on asphalt | Seamless finish |
Environmental compliance in brownfield locations
Many urban charging hubs are planned for repurposed industrial sites or former gas stations.
Excavating through these “brownfields” carries the risk of breaching capped contamination plumes or mobilizing hazardous soil vapors.
Our non-intrusive underground infrastructure surveys identify soil anomalies and potential underground storage tanks (USTs) that were left behind.
This intelligence allows the design team to route conduits around “hot” zones preventing the release of toxins. This proactive mapping aids in meeting the due diligence requirements of the EPA Brownfields Program for safe site redevelopment.
Validating as-built conditions for future scalability
The EV market is evolving rapidly toward Megawatt Charging Systems (MCS) for heavy-duty trucks, governed by the SAE J3271 standard.
Installing infrastructure today that cannot accommodate the larger conduit banks required for these future power levels is a strategic error.
We provide a digital twin of the subsurface environment that supports scalable master planning.
This allows facility owners to reserve underground capacity for future expansion phases without needing to re-survey the entire lot.
Energizing the infrastructure of tomorrow
The success of an EV charging network depends on the reliability of the buried cables that power it.
Investing in forensic-level subsurface data prevents the utility conflicts that cause budget overruns and safety incidents.
Developers who prioritize underground certainty ensure that their charging hubs remain operational and profitable.
For verified site mapping and utility clearance rely on the capabilities of Maya Global Group. Our teams deliver the geotechnical intelligence required to electrify the urban landscape.
