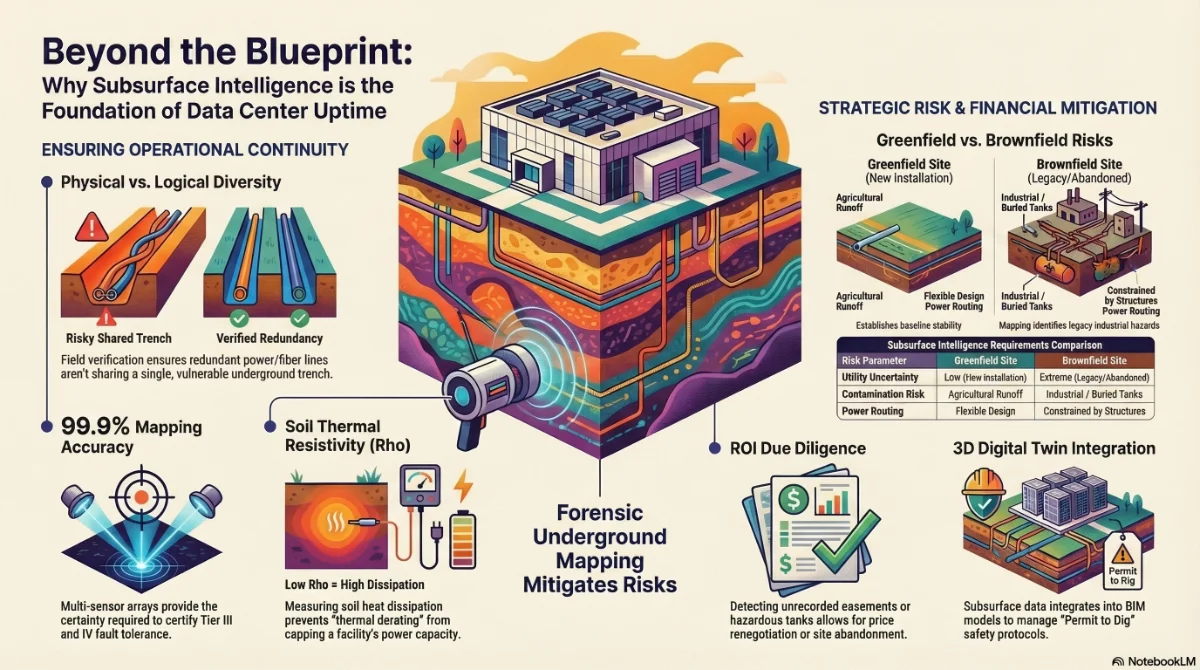

Data center operational continuity relies entirely on the resilience of its subsurface lifelines.
Selecting a site without physically verifying the diversity of power feeds and fiber routes introduces a single point of failure that no amount of internal redundancy can mitigate.
A forensic subsurface investigation provides the empirical data required to validate utility provider claims and secure the “Five Nines” reliability standard before capital is committed.

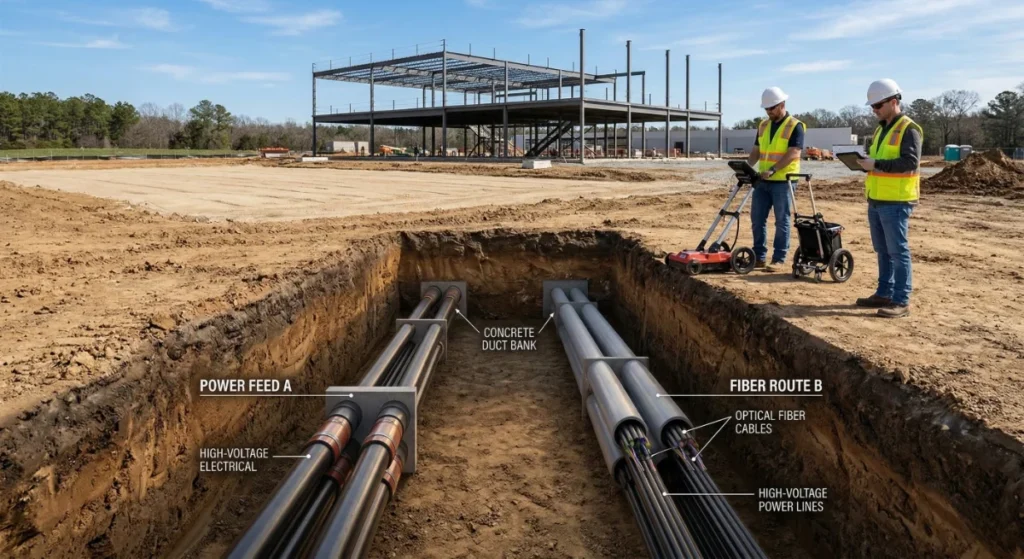

Validating physical diversity of utility feeds
The primary directive for Tier III and Tier IV data centers is the separation of redundant pathways.
Utility providers often provide “logical” diversity maps where two feeds appear separate on paper but physically run through the same underground trench for a critical mile.
Relying on unverified utility records exposes the facility to a “concurrent maintainability” failure where a single backhoe strike severs both primary and secondary feeds.
According to the Uptime Institute Tier Standard, physical isolation of distribution paths is a prerequisite for fault tolerance.
We employ a multi-sensor mapping strategy to trace the actual depth and vector of incoming high-voltage lines and fiber optic bundles.
Field verification is paramount; our multi-sensor arrays achieve a detection accuracy rate of 99.
9%, providing the absolute certainty required to certify that the redundant paths are truly independent and compliant with the site’s Tier rating.
This process confirms compliance with TIA-942 infrastructure standards, ensuring that a localized thermal event or excavation accident in one trench cannot propagate to the backup line.
Detecting thermal risks and heat dissipation inhibitors
High-density computing requires massive power loads that generate significant heat within underground transmission cables.
If the soil surrounding these cables has poor thermal conductivity or if lines are bunched too closely, the resulting “thermal derating” can cap the facility’s power capacity below its design limit.
We utilize innovative special technologies to measure Soil Thermal Resistivity (Rho values) in strict accordance with the IEEE 442 guide.
This critical data allows electrical engineers to accurately calculate cable ampacity and design backfill specifications.
Detecting high-resistivity zones early prevents the need for costly de-rating of the power system or emergency retrofitting of thermal backfill later.
By mapping these thermal constraints early, electrical engineers can route intake lines through cooler soil corridors, maximizing the ampacity and efficiency of the grid connection.
Mitigating water and geotechnical threats
While water is essential for evaporative cooling, it is a lethal threat to subsurface electronics.
Unmapped aquifers, high water tables, or leaking municipal pipes pose a direct ingress risk to underground cable vaults and meet-me rooms.
We employ a hybrid detection strategy, utilizing satellite-based soil moisture analysis to identify macro-level saturation zones across the campus footprint, followed by on-site water system leak detection sensors to pinpoint specific ingress risks.
This identifies zones requiring expensive dewatering, effectively adjusting the Total Cost of Ownership (TCO) model.
Furthermore, industrial legacy sites frequently conceal abandoned Underground Storage Tanks (USTs) and hazardous waste conduits.
Striking a forgotten fuel tank during excavation triggers an immediate regulatory stop-work order and mandates a remediation process that can delay the critical path by months.
Magnetic and GPR anomalies allow us to flag these environmental hazards for safe removal prior to general mobilization.
Compliance with CISA physical security guidelines requires a full understanding of these subsurface vulnerabilities to prevent infrastructure sabotage or natural collapse.
Operational Comparison: Greenfield vs. Brownfield Risks
Data center developers often weigh the speed of Brownfield conversion against the blank slate of Greenfield construction. The following table illustrates the subsurface intelligence requirements for each.
| Risk Parameter | Greenfield Site (New Build) | Brownfield Site (Conversion) |
| Utility Uncertainty | Low (New installation) | Extreme (Legacy/Abandoned lines) |
| Soil Stability | Unknown / Native soil | Compromised / Previous excavation |
| Contamination Risk | Agricultural runoff | Industrial chemicals / Buried tanks |
| Survey Objective | Baseline mapping & topo | Conflict detection & Void analysis |
| Power Routing | Flexible design | Constrained by existing structures |
| Time to Market | Slow (Permitting/Build) | Fast (If subsurface is clear) |
Optimizing Land Acquisition and CapEx Forecasting
Site selection is a financial calculation as much as a technical one. Discovering a major unrecorded easement or a hazardous waste tank after closing can destroy the project’s ROI.
A pre-acquisition subsurface survey acts as the ultimate due diligence tool, exposing ‘deal-killer’ constraints that title searches miss.
This data empowers the real estate team to renegotiate the purchase price to account for remediation costs or to abandon a commercially unviable site before capital is deployed.
Mapping “Dark Fiber” and connectivity assets
Validating Off-Site ‘Lead-In’ Corridors
The reliability of the facility is only as good as its external connections. Our survey scope extends beyond the property line to validate the ‘Last Mile’ approach routes from the municipal street.
This ensures that the proposed conduits for new fiber carriers are not blocked by immovable obstacles like high-pressure gas mains or culverts in the public right-of-way.
Connectivity is the core product of any colocation facility. Identifying the precise location of unlit “dark fiber” assets allows developers to negotiate diverse carrier entry points with leverage.
Our approach uses high-frequency GPR and electromagnetic induction to locate non-conductive fiber conduits.
This verified map enables the design of secure “meet-me” vaults that are physically segregated from gas mains and water lines.
Hardening the Physical Security Perimeter
Cybersecurity begins in the dirt. Unsecured utility manholes and forgotten maintenance tunnels provide physical access vectors for sabotage or fiber tapping outside the facility’s fence line.
A complete underground infrastructure map identifies these vulnerability points, allowing security teams to weld shut unnecessary access covers and install intrusion detection sensors on critical subsurface vaults, extending the security perimeter beyond the building walls.
Establishing the “Permit to Dig” protocol
Once construction begins, the site becomes a dynamic zone of excavation.
Creating a verified 3D digital twin of the subsurface infrastructure is the only way to manage the risk of utility strikes during the fast-tracked build schedule.
This data is integrated into the project’s Building Information Modeling (BIM) environment using IFC 4.3 standards.
It allows the General Contractor to issue strict “Permits to Dig” based on verified clear zones rather than assumptions.
This protocol protects the schedule from stoppage caused by accidental line severs and provides a defensible audit trail for insurance purposes.
Securing the digital future
The reliability of a data center is determined long before the servers go online. Investing in forensic subsurface intelligence eliminates the latent risks that threaten uptime and investment yields.
Developers who prioritize deep-data mapping ensure that their facilities deliver the uninterrupted performance demanded by the digital economy.
For verified infrastructure mapping and site selection support, rely on the capabilities of Maya Global Group. Our teams provide the data necessary to build with absolute confidence.
