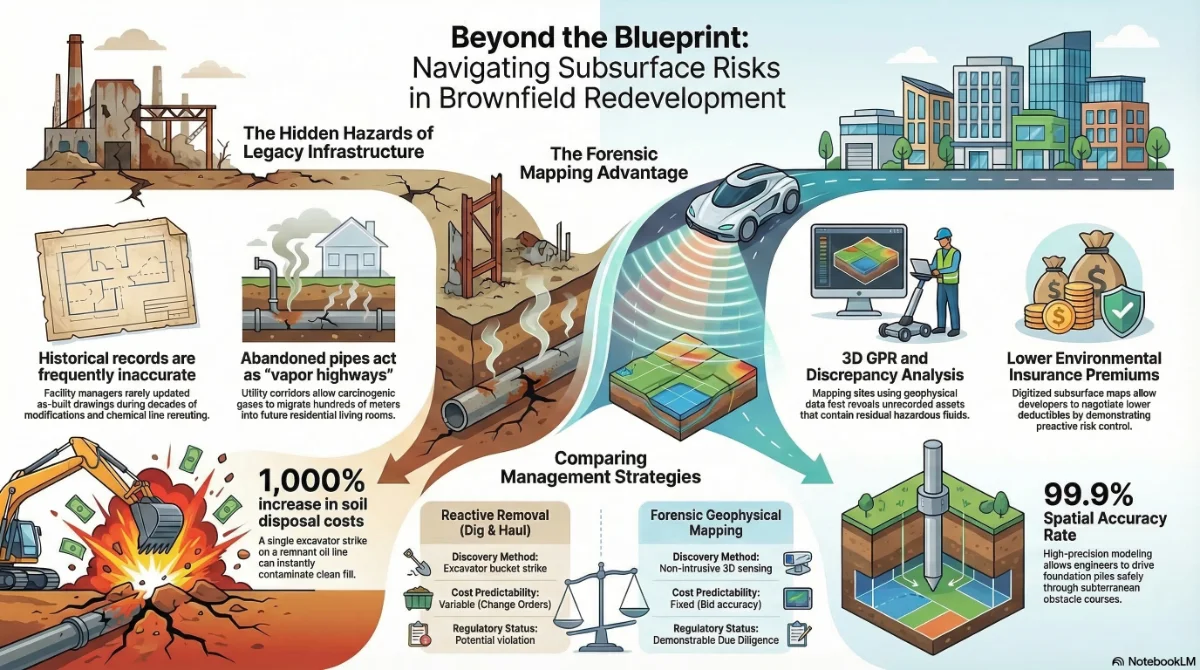

Redeveloping former industrial zones requires distinct subsurface verification to prevent environmental liability.
Legacy piping networks often act as preferential pathways for volatile organic compounds (VOCs) to migrate into new residential structures.
A geophysical investigation delimits these hazards before excavation begins ensuring regulatory compliance and project safety.
The fallacy of historical facility records
While the ASTM E1527-21 standard for Phase I Environmental Site Assessments relies heavily on historical records, industrial sites often operate for decades with undocumented modifications.
Facility managers rarely updated as-built drawings when rerouting chemical feed lines, creating a dangerous gap between the paper audit and the subsurface reality.
Consequently the physical reality of the subsurface bears little resemblance to the archival paper trail.
Relying on these documents for site characterization is a primary cause of “unexpected discovery” claims during earthworks.
We implement a blind-study approach where we map the site using geophysical data first and then overlay the historical records.
This discrepancy analysis highlights unrecorded assets that likely contain residual process fluids or hazardous sludge.
Leveraging Data to Reduce Environmental Insurance Premiums
Insurers view unmapped brownfields as high-risk assets, leading to exorbitant Environmental Impairment Liability (EIL) premiums.
By presenting a digitized subsurface map during the underwriting process, developers demonstrate proactive risk control.
This transparency often allows brokers to negotiate lower deductibles and secure coverage for ‘unknown pre-existing conditions’ that would otherwise be excluded.
Delineating conductive and non-conductive transport lines
Manufacturing facilities utilize a diverse array of piping materials ranging from cast iron and steel to clay, concrete, and early-generation PVC.
Standard electromagnetic locators can only detect conductive metal pipes leaving plastic or terracotta chemical drains completely invisible.
These non-conductive lines are often the most critical as they frequently carried corrosive acids or waste products.
To resolve this, we utilize 3D Ground Penetrating Radar (GPR) arrays capable of cutting through the interference of reinforced factory floors.
Unlike standard units, these massive data-collection grids visualize the dielectric contrast between the pipe material and the surrounding soil in three dimensions.
This allows us to map the trajectory of non-metallic process lines and identify associated structures such as underground storage tanks (USTs) or interceptors.
By applying innovative special technologies for data processing we can resolve these features even in cluttered demolition zones.
Distinguishing ‘Live’ Pressure Lines from Abandoned Assets
Demolition crews face mortal danger from cutting into lines that still contain pressurized ammonia, steam, or high-voltage feeds. We trace these lines back to their source manifolds to verify energy isolation.
This forensic tracing ensures that ‘Lockout/Tagout’ procedures are applied correctly to the specific sub-grade assets that pose an immediate explosion or electrocution risk.
Mitigating vapor intrusion risks
The most insidious threat in a brownfield conversion is not the pipe itself but the void space it creates.
Abandoned utility corridors serve as preferential pathways for soil vapors allowing carcinogenic gases to travel hundreds of meters from the source to future living rooms.
This phenomenon is a major focus of the ASTM E2600 Standard Guide for Vapor Encroachment Screening.
Our survey data allows environmental engineers to locate and seal these migration highways.
By grouting or removing these conduits developers ensures that the vapor barrier systems under new foundations are not compromised by legacy infrastructure.
This level of due diligence is essential for meeting the stringent indoor air quality standards required for residential occupancy.
Operational Comparison: Managing Legacy Pipes
The approach to handling existing infrastructure defines the project’s risk profile. The following table contrasts simple removal with forensic mapping.
| Management Strategy | Reactive Removal (Dig & Haul) | Forensic Geophysical Mapping |
| Discovery Method | Excavator bucket strike | Non-intrusive sensing |
| Chemical Risk | Uncontrolled release | Planned abatement |
| Vapor Risk | Pathways remain unknown | Pathways defined & sealed |
| Schedule Impact | Stoppages for HAZMAT | Pre-construction clearance |
| Cost Predictability | Variable (Change Orders) | Fixed (Bid accuracy) |
| Regulatory Status | Potential violation | Demonstrable Due Diligence |
The Financial Trap of Soil Mixing
A single excavator bucket striking a remnant oil line can contaminate hundreds of cubic meters of otherwise clean fill.
This ‘cross-contamination’ instantly converts standard excavation spoil into hazardous waste, increasing disposal costs by 1,000%.
Our precision mapping allows for the surgical segregation of contaminated infrastructure, preserving the clean soil budget.
Handling Asbestos Containing Material (ACM)
Many industrial pipes installed before the 1980s are insulated with friable asbestos or constructed of asbestos-cement (transite).
Shattering a transite pipe during grading releases millions of hazardous fibers into the air triggering an immediate site shutdown and federal investigation.
We identify the geometric signature of these lines without physical disturbance. Knowing the exact location and depth of suspected ACM piping allows remediation teams to surgically remove the hazard using wet methods.
This precise targeting protects the health of the workforce and aligns with OSHA construction standards for asbestos handling.
Preventing foundation clashes
Mixed-use developments often require deep pile foundations to support high-rise structures. Driving a concrete pile into a 30-inch industrial water main can cause a sinkhole that destabilizes the piling rig.
We integrate the utility map directly into the structural grid. This allows the design team to position pile caps in the clear zones between legacy corridors.
Our underground infrastructure mapping provides data compliant with ASCE 38-22 Quality Level B standards, giving structural engineers the XYZ coordinates needed to navigate the piling plan through the subterranean obstacle course.
Field verification through vacuum excavation confirms that our predictive modeling achieves a spatial accuracy rate of 99.
9%, providing the absolute confidence needed to drive piles through a minefield of legacy industrial obstructions.
Facilitating the Phase II Environmental Site Assessment
The geophysical survey is a critical precursor to the Phase II ESA. Instead of drilling soil borings at random intervals environmental consultants use our data to target specific pipe junctions and tank farms.
This targeted sampling yields a more accurate characterization of the soil contamination profile.
This methodology supports the EPA Brownfields and Land Revitalization objectives by ensuring that site cleanup funds are directed toward the actual sources of pollution.
It transforms the environmental assessment from a statistical guessing game into a precise surgical operation.
Detecting ‘Phantom’ Underground Storage Tanks (USTs)
Many industrial sites contain ‘phantom’ tanks—USTs that were paved over decades ago without proper closure.
Our magnetometry and GPR scans identify the specific volumetric signatures of these void or fluid-filled structures.
Finding these tanks before the heavy equipment arrives prevents the accidental crushing and release of hazardous sludge into the groundwater.
Securing the legacy of the development
Converting a blighted industrial site into a vibrant community is a complex engineering feat. Investing in accurate subsurface intelligence eliminates the toxic variables that threaten future residents and investor capital.
Developers who prioritize forensic site mapping ensure that their projects are built on a clean and stable foundation.
For comprehensive brownfield site mapping and utility detection rely on the capabilities of Maya Global Group. Our teams deliver the data required to safely bridge the past and the future.
