Bridge foundation projects in urban corridors face extreme risks from unmapped utilities.
Drilled shafts require deep vertical clearance that standard surface locators cannot guarantee, creating a high probability of conflict with deep-buried trunk lines.
A comprehensive Subsurface Utility Engineering (SUE) investigation provides the geospatial certainty required to design pile layouts that thread the needle between critical infrastructure assets.
Navigating the vertical constraints of drilled shafts

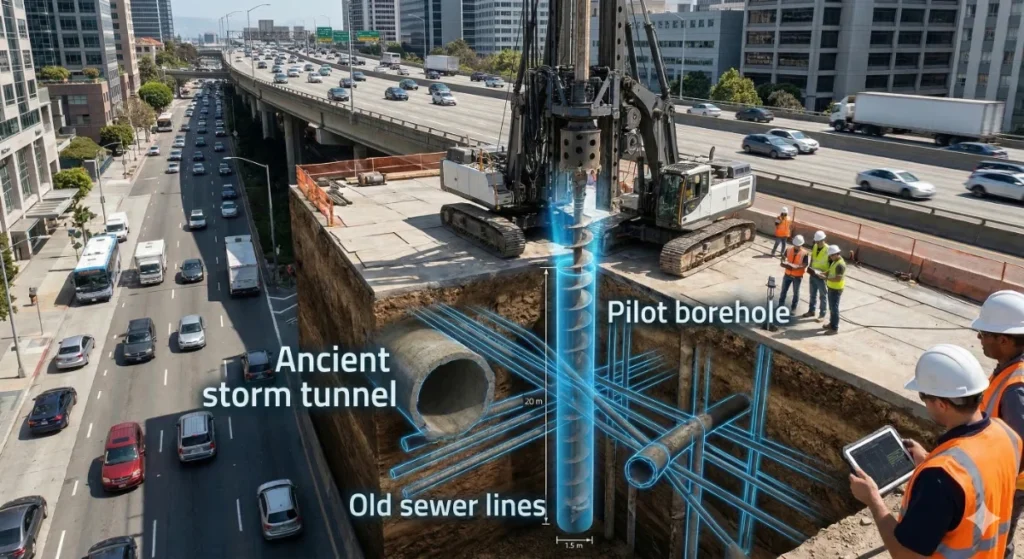

Installing large-diameter drilled shafts involves blind excavation to depths that far exceed the range of typical utility scanners.
A standard one-call mark-out only protects the top few meters of soil, leaving deep storm tunnels and gravity sewers completely vulnerable to the auger bit.
Since surface-based GPR signals attenuate rapidly in conductive soils, we employ Downhole Gradiometers and Cross-Hole Tomography inserted into pilot bores.
This borehole geophysics approach scans the immediate cylinder of the proposed shaft from the inside out, detecting deep ferrous obstructions or voids that are invisible from the pavement level, ensuring the auger path is truly clear.
This level of foresight is essential for compliance with FHWA deep foundation guidelines, which mandate rigorous obstruction clearance to prevent structural anomalies.
Working within active rail and highway Rights-of-Way (ROW)
Construction within an active Right-of-Way demands non-intrusive methods that do not disrupt traffic flow or rail schedules.
Closing a lane on a major interstate for exploratory trenching is often operationally impossible and financially prohibitive due to lane-rental fees.
We utilize mobile multi-sensor arrays that can collect data at traffic speeds or safely from the shoulder.
This approach adheres to strict safety protocols while capturing high-density data on longitudinal telecommunication banks and signal lines running parallel to the roadway.
For rail corridors, we align with AREMA manual for railway engineering standards to detect signal cables and fiber optics without fouling the track ballast.
Preventing High-Profile Community Disruptions
Bridge projects operate under intense public scrutiny.
Severing a fiber optic trunk that serves local hospitals or emergency response centers creates an immediate public relations crisis for the Department of Transportation (DOT).
Our rigorous detection protocols ensure that vital community services remain active, protecting the political capital of the project stakeholders and maintaining public trust throughout the construction phase.
Mitigating vibration and settlement risks to existing lines
The installation of bridge piers generates significant ground vibration and displacement.
If a high-pressure gas main or a brittle water pipe lies within the “zone of influence” of the pile driving, the ground movement alone can cause a catastrophic rupture.
We overlay the proposed pile locations with the mapped utility network to calculate the proximity risk.
By identifying these conflicts early we enable the deployment of vibration monitoring sensors on critical assets before construction begins.
We also utilize innovative special technologies to assess the condition of adjacent utility bedding, ensuring it can withstand the geotechnical stress of heavy construction.
Identifying Preferential Pathways for Hydraulic Scour
Poorly compacted utility trenches from decades past can act as subterranean conduits for water.
Near bridge abutments, these ‘preferential pathways’ accelerate soil erosion and hydraulic scour, undermining the new foundation over time.
Our survey identifies these loose soil zones, allowing geotechnical engineers to grout or seal them, protecting the long-term structural health of the pier.

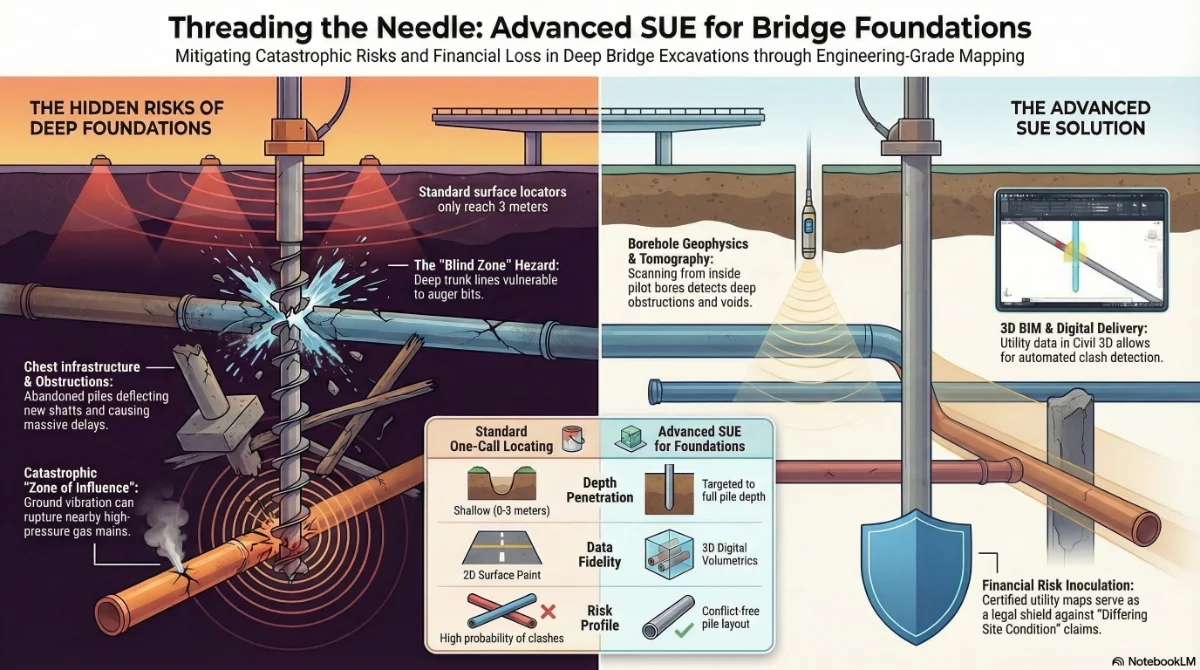

Operational Comparison: Standard Locating vs. Deep Foundation SUE
The following table contrasts the effectiveness of standard locating versus engineering-grade mapping for bridge projects.
| Project Metric | Standard One-Call Locating | Advanced SUE for Deep Foundations |
| Depth Penetration | Shallow (0-3 meters) | Deep (Targeted to pile depth) |
| Data Fidelity | 2D Surface Paint | 3D Digital Volumetrics |
| Obstruction Type | Conductive pipes only | Non-conductive & Void detection |
| Traffic Impact | High (Stop-and-go verification) | Low (Mobile & Remote sensing) |
| Design Utility | Field reference only | Integrated into Bridge BIM |
| Risk Profile | High probability of clashes | Conflict-free pile layout |
Integrating utility data into Civil 3D and BIM
Modern bridge design relies on complex 3D modeling to ensure structural integrity. A utility map that exists only as a PDF overlay is useless for detecting hard clashes with sloping drainage pipes or battered piles.
We deliver data compatible with AASHTO digital delivery standards and IFC 4.3 infrastructure standards, ensuring that the subsurface utility layer is fully integrated into the project’s Civil 3D environment.
This allows the design team to run automated clash detection algorithms that highlight interference between the proposed shaft casing and existing infrastructure.
This integration transforms the utility survey from a safety check into a primary design constraint.
Managing the “Ghost Infrastructure” of previous bridges
Replacement bridges are often built directly over the footprint of demolished structures.
Abandoned timber piles, concrete footings, and left-in-place sheet piling act as formidable subsurface obstructions that can deflect new shafts.
Our underground infrastructure investigation includes the detection of these historical remnants.
By mapping the debris field of the previous structure we allow the contractor to select the appropriate drilling tooling and anticipate obstruction removal costs.
This prevents the common scenario where a “clean” site suddenly becomes a complex claim for differing site conditions.
Inoculating the Project Against ‘Differing Site Conditions’ (DSC) Claims
The most frequent cause of budget disputes in bridge construction is the contractor claiming compensation for unforeseen subsurface hazards.
By providing a certified Quality Level B or A utility map in the bid package, the asset owner shifts the liability risk back to the contractor.
This forensic documentation serves as a legal shield, proving that due diligence was performed and preventing opportunistic change orders that inflate the final cost.
Verifying Ground Bearing for Heavy Drilling Rigs
Drilled shaft rigs exert immense point loads on the surface. A shallow, unmapped utility vault or a void beneath the working platform can collapse under the outrigger’s weight, causing the 100-ton rig to topple.
Our void detection scans map the integrity of the ‘working platform’ zone, ensuring that the ground is solid enough to support the heavy machinery required to build the bridge.
Validating clearance for trenchless utility relocations
Bridge projects frequently require the relocation of utilities that interfere with the new alignment.
Horizontal Directional Drilling (HDD) is often used to move these lines, but this method carries its own risk of striking existing deep assets.
We provide verified clearances for these relocation paths. This ensures that the new utility bores do not intersect with the existing bridge pilings or other deep utilities.
This comprehensive approach supports the ASCE 38-22 standard for recording and exchanging utility infrastructure data.
Field validation through vacuum excavation confirms that this predictive modeling achieves a spatial accuracy rate of 99.
9%, providing the confidence needed to thread high-voltage relocations through the narrowest of subterranean corridors without compromising the structural zone of influence.
Ensuring structural and schedule certainty
The success of a bridge project is determined by the speed and safety of its foundation installation.
By implementing the SHRP2 R01 conflict matrix protocols, investing in deep-subsurface intelligence eliminates the unknown variables that lead to rig downtime.
This systematic approach ensures that every potential clash is quantified and resolved in the design phase, ensuring that critical transportation assets are delivered on time.
