Expanding airport runways and taxiways requires mapping a dense network of high-pressure aviation fuel lines and communication trunks hidden beneath massive concrete slabs.
Precise geophysical validation allows aviation authorities to integrate new pavement sections without disrupting active flight operations or compromising physical security.
This geotechnical baseline dictates the safe placement of heavy drainage infrastructure and runway lighting conduits.
Navigating Aviation Fuel and Fire Suppression Networks

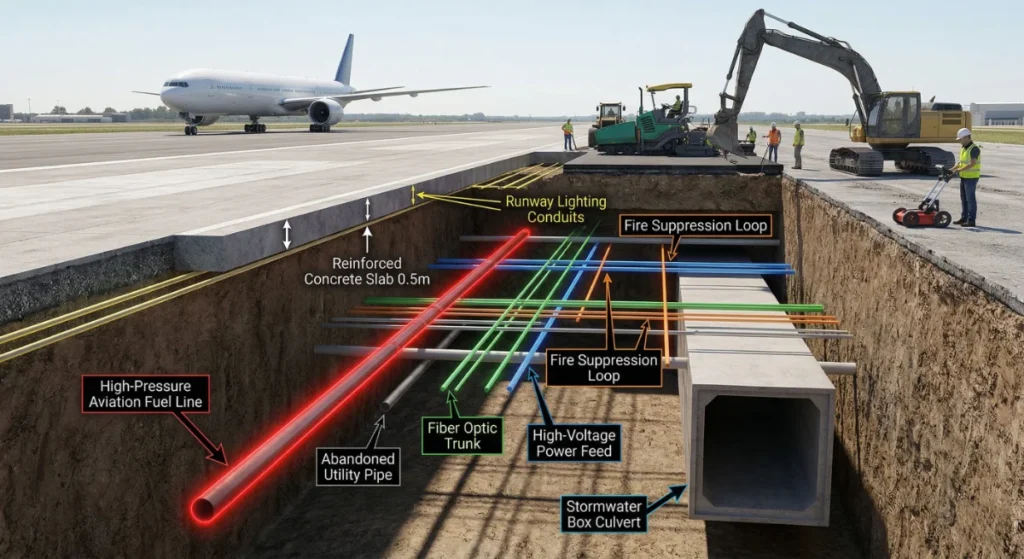

Commercial airports distribute millions of gallons of aviation fuel through a subterranean network of high-pressure pipelines.
Expanding a taxiway requires heavy earthmoving equipment to operate directly above these volatile conduits.
A single utility strike on an aviation fuel line halts airport operations and triggers massive environmental cleanup mandates. We deploy advanced scanning arrays to map the exact trajectory of these fuel networks.
This physical verification aligns directly with the Federal Aviation Administration guidelines regarding the protection of underground utilities. Implementing comprehensive underground infrastructure mapping protocols guarantees that heavy machinery can excavate safely around these critical assets.
Additionally, detecting the precise layout of the static grounding grids surrounding the fuel hydrants is critical, as severing these shallow copper loops creates a catastrophic ignition risk from static discharge during aircraft refueling.
Isolating Fire Suppression Systems
Airports also maintain massive underground water loops to supply emergency fire suppression systems. Disrupting these lines during construction leaves the tarmac vulnerable.
We trace these high-volume water networks before pavement removal begins. By applying proactive water leak detection methods, contractors verify the structural integrity of the existing pipes to prevent flooding the active taxiways.
Overcoming Signal Attenuation in Thick Pavements
Aviation pavements are incredibly thick and heavily reinforced with steel dowel bars to support the weight of commercial airliners.
This dense material composition creates a harsh environment for standard ground penetrating radar.
Put simply, signal attenuation occurs when the incredibly dense reinforced concrete of an aviation runway absorbs and scatters radar waves, requiring multi-frequency systems to punch through to the utilities below.
We utilize high-powered systems to penetrate the runway deck and map the earth underneath. As detailed in our recent radar technology algorithm case study, processing these signals provides a clear three-dimensional model of the subsurface.
This data is mandatory for compliance with the International Civil Aviation Organization manuals which demand rigorous infrastructure validation.
Mapping Runway Lighting and Communication Trunks
The centerline and touchdown zone lighting systems rely on a complex web of electrical conduits embedded directly into the pavement.
Severing these communication trunks blinds the control tower and forces immediate flight diversions. We map these shallow electrical feeds utilizing advanced special scanning technologies to create safe cutting zones for the concrete saws.
Operational Comparison

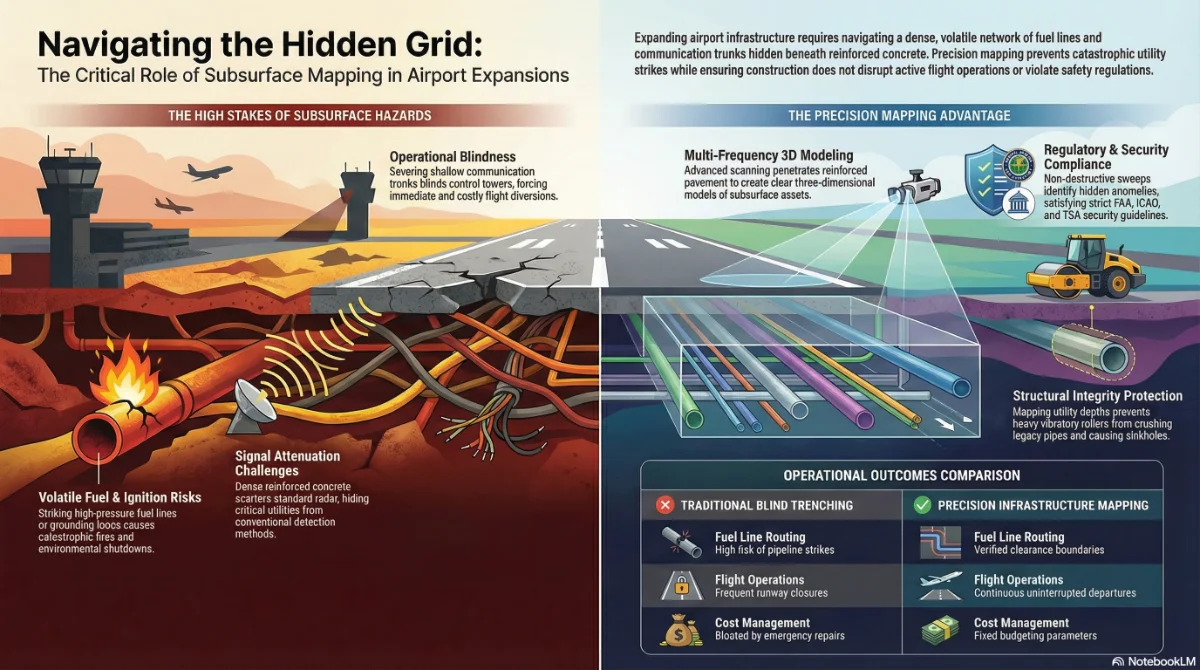

The viability of airfield construction depends entirely on managing subsurface spatial data. The following table contrasts conventional blind trenching with precision geophysical mapping.
| Construction Phase | Traditional Blind Trenching | Precision Infrastructure Mapping |
| Fuel Line Routing | High risk of pipeline strikes | Verified clearance boundaries |
| Concrete Removal | Accidental lighting conduit cuts | Protected electrical infrastructure |
| Flight Operations | Frequent runway closures | Continuous uninterrupted departures |
| Project Timeline | Delayed by unexpected rerouting | Linear schedule progression |
| Cost Management | Bloated by emergency repairs | Fixed budgeting parameters |
Managing Stormwater Runoff on Impervious Tarmacs
Expanding a runway creates acres of new impervious surface, generating massive volumes of stormwater runoff during heavy rain events.
This water must be rapidly channeled away from the active movement areas to prevent hydroplaning hazards.
In simple terms, dynamic hydroplaning occurs when inadequate subsurface drainage leaves a thin sheet of standing water on the tarmac, causing aircraft tires to lift off the pavement and completely lose directional control at high speeds.
Installing new high-capacity box culverts and trench drains requires deep excavations that often intersect with legacy airport infrastructure.
We scan the proposed drainage corridors to ensure the new gravity lines maintain their required invert elevations without clashing with existing high-voltage duct banks.
By surveying the overarching commercial water system networks, we ensure that new drainage paths integrate seamlessly. Furthermore, reviewing urban infrastructure detection cases shows that mapping these deep intersections prevents the need for costly mechanical lift stations.
Environmental Containment and De-Icing Fluids
In colder climates, airports must collect and process toxic de-icing fluids before they reach municipal water systems.
The containment networks handling these hazardous chemicals are heavily regulated and must remain completely isolated from standard storm drains. We verify the physical separation of these distinct plumbing systems.
If the soil surrounding these chemical lines shows signs of contamination, implementing proactive gas leak detection sweeps ensures that volatile organic compounds are not trapped beneath the new pavement.
The definitive point of no return for airport environmental systems arrives when the new chemical containment lines are permanently tied into the active processing vaults.
A subsurface cross-connection error discovered after this tie-in forces an immediate federal shutdown of the de-icing pads.
Managing Soil Consolidation Under Heavy Aircraft Loads
Adding new pavement requires heavily compacting the subgrade to prevent future settling.
Furthermore, analyzing the depth of existing utilities is critical because extreme soil compaction efforts can crush shallow legacy pipes, causing sudden sinkholes beneath the new runway surface.
We determine the exact depth of cover for all existing lines crossing the expansion zone. This ensures that the heavy vibratory rollers do not exceed the structural tolerance of the buried infrastructure.
This proactive data integration supports the Federal Highway Administration geotechnical circulars adapted for heavy airfield construction. For sites with aging drainage networks, reviewing trenchless pipe rehabilitation options can restore structural integrity without tearing up adjacent active taxiways.
Regulatory Compliance and Security
Airside construction occurs within highly secure zones where unexploded ordnance or undocumented anomalies cause immediate security lockdowns.
Contractors cannot simply dig exploratory potholes in a restricted movement area. We conduct non-destructive geophysical sweeps to identify any metallic or non-metallic anomalies hidden in the expansion footprint.
This rigorous clearing process adheres strictly to the Transportation Security Administration security guidelines by ensuring the subterranean environment harbors no hidden threats.
Additionally, integrating smart meter telemetry networks into the new terminal connections requires mapping clean subterranean corridors that bypass the high-voltage runway feeds.
Locking Down the Aviation Subsurface Blueprint
The absolute point of no return in runway expansion occurs the moment the slip-form paver pours the final concrete surface.
Any unmapped utility trapped beneath this massive slab becomes completely inaccessible without shutting down active flight operations. Modernizing an international airport requires total confidence in the subsurface layout.
Removing the guesswork protects the heavy equipment operators and keeps the flight schedules running smoothly.
Knowing exactly where every fuel pipeline and communication cable resides ensures a seamless construction process from the first concrete cut to the final striping.
For comprehensive mapping solutions and conflict prevention, Maya Global Group delivers the critical data required to build resilient aviation infrastructure. We protect your expansion projects from the ground down.
