Residential development on former extraction land requires absolute geotechnical certainty to prevent future structural collapse.
Building homes over unmapped mine shafts or adits exposes the developer to indefinite liability for subsidence and renders the final properties uninsurable.
A forensic geophysical investigation identifies these deep-seated density deficits before foundation design begins, ensuring that the land is legally and physically viable for habitation.
The operational risk of unmapped historical extraction
Historical mining records are notoriously incomplete and often inaccurate by dozens of meters.
Relying on century-old coal or mineral maps constitutes negligence in the modern regulatory environment.
A “clear” paper record does not guarantee a solid substrate.

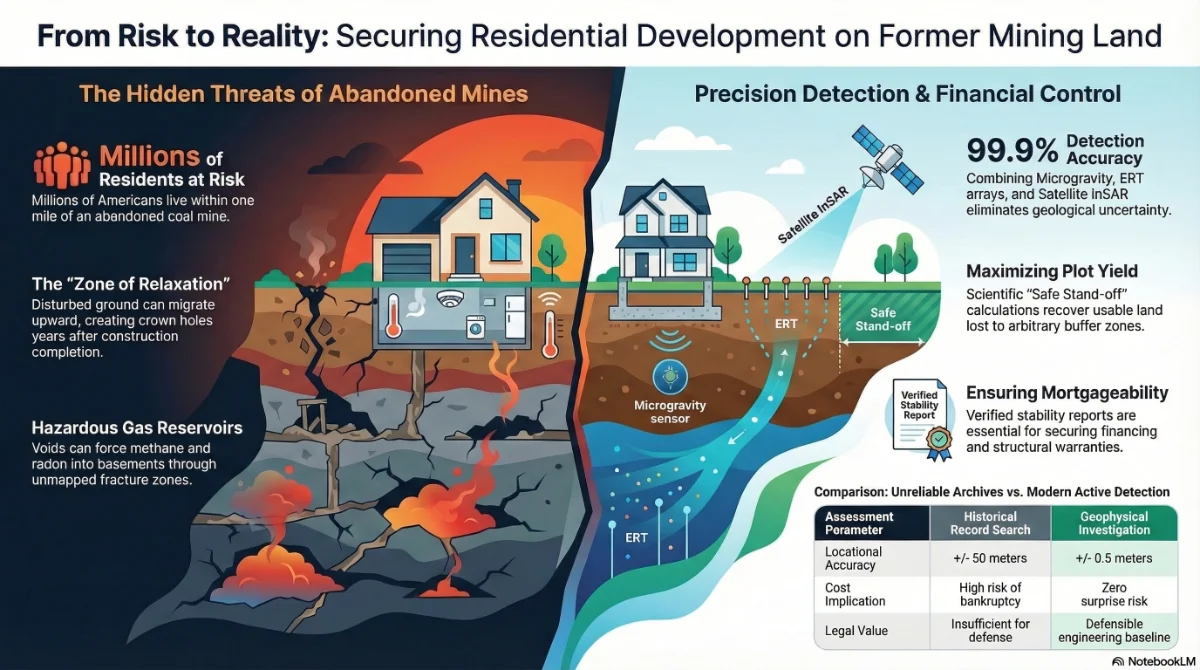

The primary threat is not just the vertical shaft itself but the “zone of relaxation” surrounding it—disturbed ground that can suddenly migrate upward, creating a crown hole at the surface years after construction is complete.
Satellite-Based Historical Subsidence Analysis
Before deploying ground teams, we utilize Satellite InSAR (Interferometric Synthetic Aperture Radar) to analyze historical ground movement patterns.
This retrospective analysis reveals localized subsidence zones with millimeter-precision, identifying active sinking trends that traditional paper records fail to capture.
According to the Office of Surface Mining Reclamation and Enforcement (OSMRE), millions of Americans live less than a mile from an abandoned coal mine.
For developers, the discovery of a void during the infrastructure phase can bankrupt the project due to unplanned remediation costs.
Furthermore, if a void is discovered after the sale, the developer faces lawsuits for “latent defects” which are rarely covered by standard general liability policies.
We utilize underground infrastructure mapping to create a definitive exclusion zone or remediation plan.
Crucially, the survey data must quantify the geological ‘Angle of Draw’—the specific trajectory at which a deep collapse propagates to the surface.
This calculation is the only way to scientifically determine the ‘Safe Stand-off Distance’ for foundations, ensuring that homes are positioned outside the theoretical cone of subsidence.
Deploying microgravity and deep-sensing arrays
Detecting a mine shaft that has been capped with timber and buried under ten meters of clay requires more than standard utility locators.
We employ high-resolution microgravity surveys which detect minute variances in rock density caused by air-filled or water-filled voids.
This technology is the industry standard for identifying the “density deficit” that characterizes a mine shaft, even if it has been partially backfilled with loose debris.
To complement microgravity, we utilize Electrical Resistivity Tomography (ERT) arrays. Unlike GPR, which can be limited by conductive clay soils, ERT provides a deep cross-sectional view of the subsurface resistivity.
This allows us to definitively distinguish between the high resistivity of an air-filled void and the low resistivity of a water-filled shaft, a critical distinction for determining the appropriate remediation method.
By applying innovative special technologies and cross-referencing gravity lows with resistivity profiles, field validations confirm that this multi-physics approach achieves a detection accuracy rate of 99.
9%, effectively removing the geological uncertainty that typically plagues brownfield residential projects.
Mitigating hazardous gas migration pathways
Abandoned mines are not just structural voids they are often reservoirs for hazardous gases like methane, carbon dioxide, and radon.
A subsurface survey must identify fracture zones that could serve as migration pathways for these gases to enter residential basements.
If a mine shaft is uncapped or improperly sealed, it acts as a chimney, forcing dangerous soil vapors upward into the building envelope.
Our survey data supports the environmental engineering team in designing gas protection membranes and venting systems.
Mapping the exact location of the shaft allows for the installation of “virtual curtains” or physical barriers that divert gas migration away from habitable structures.
This level of due diligence is essential for compliance with EPA vapor intrusion guidelines, protecting the health of future residents.
Beyond gases, the soil immediately surrounding a shaft head is often comprised of ‘colliery spoil’ rich in heavy metals and arsenates.
Our multi-spectral analysis identifies these chemical hotspots, allowing developers to segregate contaminated fill from clean soil early in the earthworks program, avoiding the astronomical costs of bulk hazardous waste disposal.
Financial Control via Volumetric Remediation
Preventing Cost Overruns in Grouting Operations
Once a shaft is located, it must be stabilized, usually through drilling and grouting.
Without a precise 3D map of the void’s volume, grouting contractors often work on open-ended “cost-plus” contracts that can spiral out of control.
A geophysical volumetric analysis provides a calculated estimate of the void space.
This data empowers the developer to demand fixed-price bids for the remediation work, capping the financial exposure before the first cement truck arrives.
Maximizing Plot Yield through Precision Buffering
Regulatory bodies often impose wide, arbitrary ‘no-build’ buffer zones around suspected mine features due to uncertainty.
By scientifically defining the exact edges of the shaft and the surrounding zone of relaxation, developers can argue for reduced setbacks.
This precision allows the recovery of usable square footage that would otherwise be sterilized, effectively increasing the number of buildable units and the project’s overall gross development value (GDV).
Operational Comparison: Records Search vs. Geophysical Scan
The following table contrasts the reliance on historical archives versus modern active detection methods.
| Assessment Parameter | Historical Record Search (Desk Study) | Geophysical Void Investigation |
| Locational Accuracy | +/- 50 meters (Low confidence) | +/- 0.5 meters (High confidence) |
| Void Status | Unknown (Assumed open or filled) | Defined (Air, Water, or Collapse) |
| Depth Profiling | Estimation based on seam depth | Measured depth to anomaly |
| Gas Risk Insight | Theoretical | Identifies migration fractures |
| Cost Implication | Low upfront / High risk later | Moderate upfront / Zero surprise risk |
| Legal Value | Insufficient for defense | Defensible engineering baseline |
Ensuring mortgageability and insurability
The ultimate exit strategy for a residential developer is the sale of the units. Major mortgage lenders now routinely deny financing for properties in mining areas unless a “certificate of stability” is provided.
A verified geophysical report serves as the evidentiary basis for this certificate.
Furthermore, structural warranties from providers like the National House Building Council (NHBC) in the UK or similar US bodies require proof that the ground bearing capacity is sufficient.
By documenting the subsurface conditions and the subsequent remediation, the developer ensures that the final homes are mortgageable assets.
This documentation prevents the scenario where a completed subdivision becomes “blighted stock” that cannot be sold due to perceived geotechnical risks.
Managing mine water interactions
Many abandoned mines have flooded over the decades creating pressurized underground reservoirs.
Accidentally breaching a wet shaft during site grading can result in an uncontrollable discharge of acidic mine water, triggering severe environmental fines.
Integrating water system leak detection protocols allows us to assess the hydrological pressure within the workings.
Understanding the water table depth relative to the mine workings is critical for foundation design, as fluctuating mine water levels can wash away fines and cause renewed settlement.
Mitigating Cross-Boundary Displacement Claims
Remediation works, particularly pressure grouting, can inadvertently displace mine water or ground gases onto adjacent properties.
A pre-remediation perimeter survey establishes a legal firewall, capturing the baseline conditions at the site boundaries.
This data is crucial for defending against subsequent claims by neighbors alleging that your stabilization efforts caused new subsidence or flooding issues on their land.
Establishing a permanent safety record
The liability for a development does not end at the ribbon cutting. A certified subsurface map creates a permanent record that the developer exercised the highest standard of care.
In the event of future ground movement caused by regional geological shifts, this dataset proves that the site was stable at the time of handover, protecting the firm from retroactive litigation.
Our reporting protocols align with global best practices, including the CIRIA C758D guide for abandoned mine workings.
This ensures that the data structure meets the rigorous validation requirements of geotechnical auditors and structural warranty providers worldwide.
Securing the foundation of the community
The viability of a residential project rests on the stability of the ground beneath it. Investing in advanced void detection eliminates the unknown variables that threaten human safety and project solvency.
Developers who prioritize forensic-level site preparation ensure that their legacy is one of quality and permanence.
For verified void detection and mine mapping solutions, rely on the capabilities of Maya Global Group. Our teams deliver the geotechnical certainty required to build on complex terrain.
